AX02-302R2-T

AX02-302R2-T

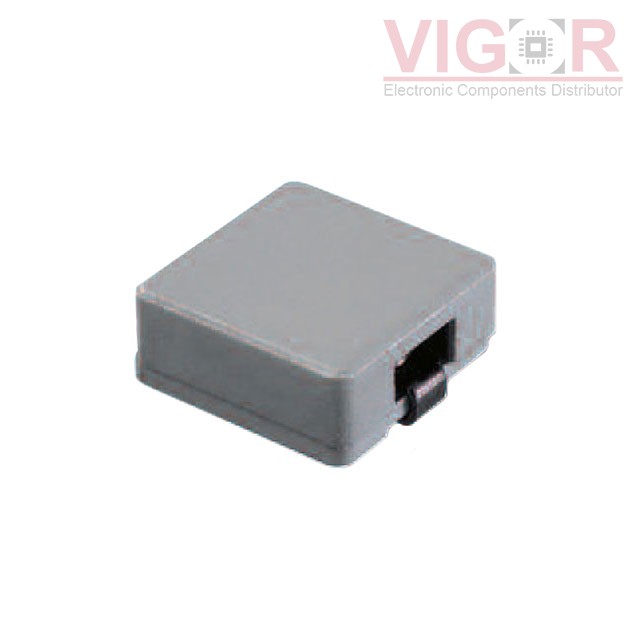

Image is for reference,
please contact us to get the real picture

Part No :

AX02-302R2-T

Manufacturer
Triad Magnetics
Description
FIXED IND 2.2UH 12A 5.1 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
AX02-302R2-T PDF
Availability
375 pieces
Unit Price
$1.92000

Current price of AX02-302R2-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AX02-302R2-T Specifications
Type Description
Series:AX02
Package:Bulk
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:2.2 µH
Tolerance:±20%
Current Rating (Amps):12 A
Current - Saturation (Isat):24A
Shielding:Shielded
DC Resistance (DCR):5.1mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:SMD
Size / Dimension:0.524" L x 0.591" W (13.30mm x 15.00mm)
Height - Seated (Max):0.256" (6.50mm)
