NLCV32T-R47M-PFR

Image is for reference,
please contact us to get the real picture

Part No :: NLCV32T-R47M-PFR

Manufacturer: TDK Corporation

Description: FIXED IND 470NH 2A 45.6 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 04 - Jul 08 2025

DataSheet: NLCV32T-R47M-PFR PDF

Availability: 2391 pieces

Unit Price: ~~$0.25000~~

Current price of NLCV32T-R47M-PFR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NLCV32T-R47M-PFR Specifications

Type	Description
Series:	NLCV-PF
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Not For New Designs
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	470 nH
Tolerance:	±20%
Current Rating (Amps):	2 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	45.6mOhm Max
Q @ Freq:	10 @ 25.2MHz
Frequency - Self Resonant:	250MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	25.2 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1210 (3225 Metric)
Supplier Device Package:	1210
Size / Dimension:	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):	0.094" (2.40mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

NLV25T-022J-PF

FIXED IND 22NH 420MA 370 MOHM

HOT

HK2125R10J-T

FIXED IND 100NH 300MA 900 MOHM

HOT

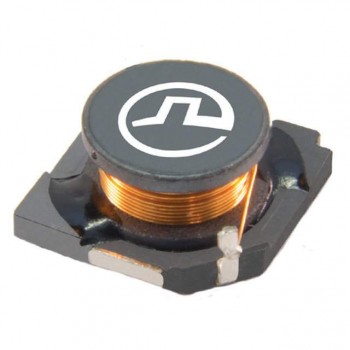

PA4305.105NLT
