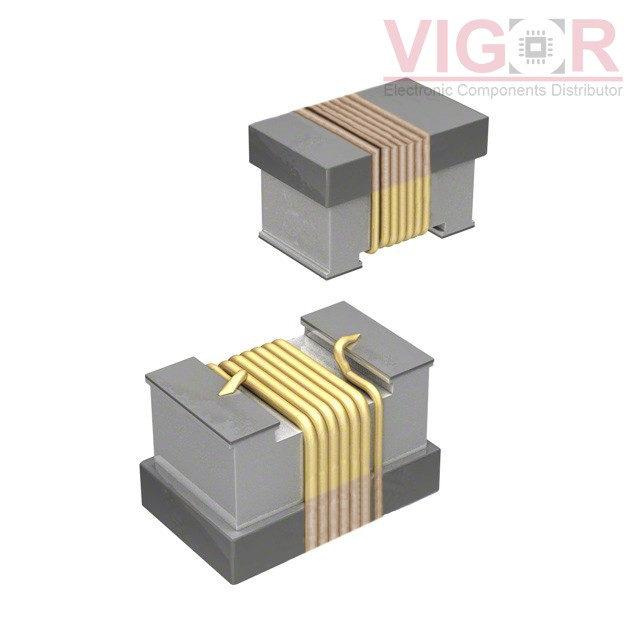

CW100505-R12J

Image is for reference,
please contact us to get the real picture

Part No :: CW100505-R12J

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 120NH 110MA 2.66OHM SM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 30 - Aug 03 2025

DataSheet: CW100505-R12J PDF

Availability: 2572 pieces

Unit Price: ~~$0.34000~~

Current price of CW100505-R12J is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CW100505-R12J Specifications

Type	Description
Series:	CW100505
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ceramic
Inductance:	120 nH
Tolerance:	±5%
Current Rating (Amps):	110 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	2.66Ohm
Q @ Freq:	20 @ 150MHz
Frequency - Self Resonant:	1.1GHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	150 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0402 (1005 Metric)
Supplier Device Package:	0402 (1005 Metric)
Size / Dimension:	0.039" L x 0.022" W (1.00mm x 0.55mm)
Height - Seated (Max):	0.024" (0.60mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

744065330

FIXED IND 33UH 1.6A 180 MOHM SMD

HOT

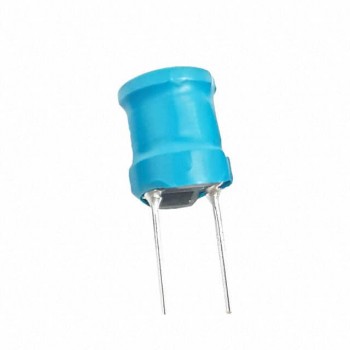

SBC6-330-272

FIXED IND 33UH 2.7A 60 MOHM TH

HOT

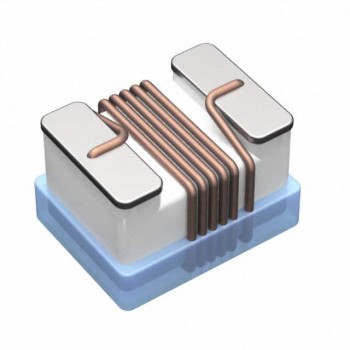

0805CT-820EJTS
