PM0805-5N6M-RC

PM0805-5N6M-RC

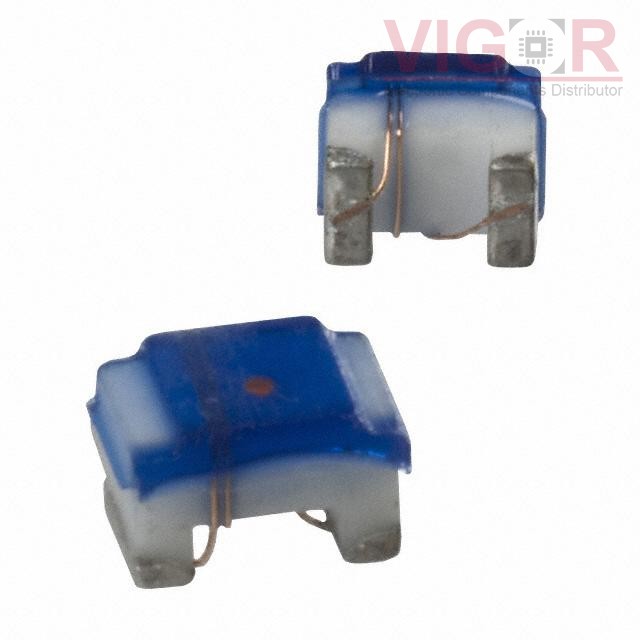

Image is for reference,
please contact us to get the real picture

Part No :

PM0805-5N6M-RC

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 5.6NH 600MA 80MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 07 - Aug 11 2025
DataSheet
PM0805-5N6M-RC PDF
Availability
0 pieces
Unit Price
$0.14400

Current price of PM0805-5N6M-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM0805-5N6M-RC Specifications
Type Description
Series:PM0805
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Alumina
Inductance:5.6 nH
Tolerance:±20%
Current Rating (Amps):600 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):80mOhm
Q @ Freq:60 @ 1GHz
Frequency - Self Resonant:5.8GHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:250 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0805 (2012 Metric)
Supplier Device Package:0805 (2012 Metric)
Size / Dimension:0.083" L x 0.059" W (2.10mm x 1.50mm)
Height - Seated (Max):0.059" (1.50mm)
