PM13560S-6R0M-RC

PM13560S-6R0M-RC

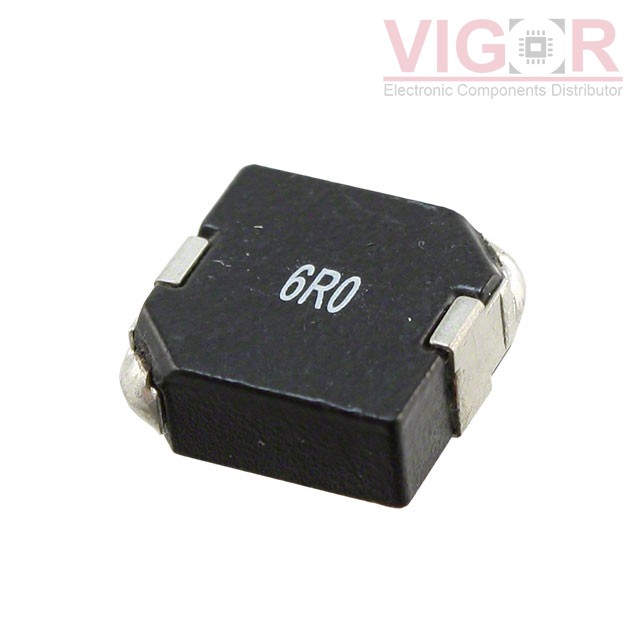

Image is for reference,
please contact us to get the real picture

Part No :

PM13560S-6R0M-RC

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 6UH 9.5A 10 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
PM13560S-6R0M-RC PDF
Availability
288 pieces
Unit Price
$2.37000

Current price of PM13560S-6R0M-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM13560S-6R0M-RC Specifications
Type Description
Series:PM13560S
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Iron
Inductance:6 µH
Tolerance:±20%
Current Rating (Amps):9.5 A
Current - Saturation (Isat):14A
Shielding:Shielded
DC Resistance (DCR):10mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 150°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.547" L x 0.531" W (13.90mm x 13.50mm)
Height - Seated (Max):0.232" (5.90mm)
