LQW18AN56NJ00D

LQW18AN56NJ00D

Image is for reference,
please contact us to get the real picture

Part No :

LQW18AN56NJ00D

Manufacturer
TOKO / Murata
Description
FIXED IND 56NH 360MA 350 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
LQW18AN56NJ00D PDF
Availability
50423 pieces
Unit Price
$0.15000

Current price of LQW18AN56NJ00D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQW18AN56NJ00D Specifications
Type Description
Series:LQW18
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Non-Magnetic
Inductance:56 nH
Tolerance:±5%
Current Rating (Amps):360 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):350mOhm Max
Q @ Freq:38 @ 200MHz
Frequency - Self Resonant:2.4GHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0603 (1608 Metric)
Supplier Device Package:0603 (1608 Metric)
Size / Dimension:0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max):0.039" (1.00mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT LQP03HQ2N1C02D

LQP03HQ2N1C02D

FIXED IND 2.1NH 600MA 120 MOHM
HOT LBR2012T2R2MV

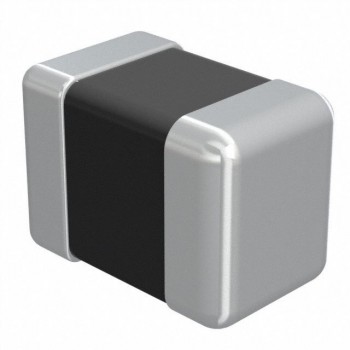

LBR2012T2R2MV

FIXED IND 2.2UH 260MA 130 MOHM
HOT LQG15WZ22NH02D

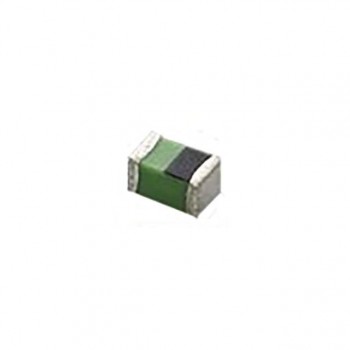

LQG15WZ22NH02D
