AH43328B-R22KHF

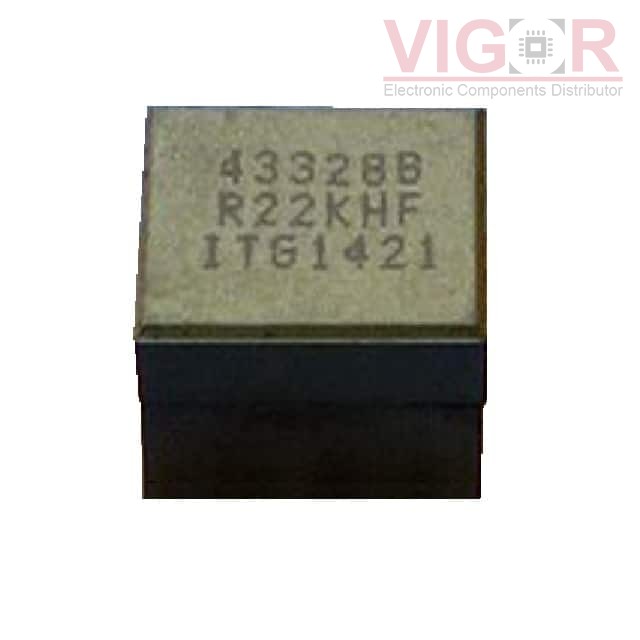

Image is for reference,
please contact us to get the real picture

Part No :: AH43328B-R22KHF

Manufacturer: ITG Electronics, Inc.

Description: FIXED IND 220NH 70A 0.2 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 05 - Aug 09 2025

DataSheet: AH43328B-R22KHF PDF

Availability: 900 pieces

Unit Price: ~~$3.75000~~

Current price of AH43328B-R22KHF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AH43328B-R22KHF Specifications

Type	Description
Series:	AH43328B
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	220 nH
Tolerance:	±10%
Current Rating (Amps):	70 A
Current - Saturation (Isat):	56A
Shielding:	Shielded
DC Resistance (DCR):	0.2mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 130°C
Inductance Frequency - Test:	500 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	2-SMD
Supplier Device Package:	-
Size / Dimension:	0.437" L x 0.319" W (11.10mm x 8.10mm)
Height - Seated (Max):	0.311" (7.90mm)
