SDR0703-180KL

SDR0703-180KL

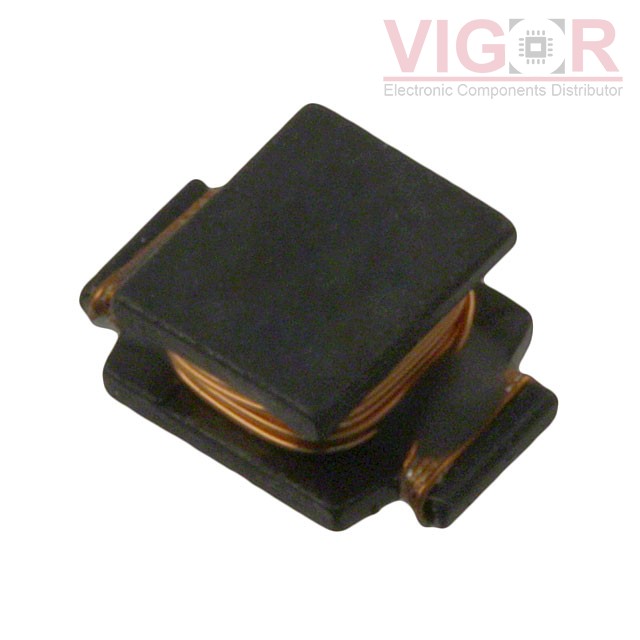

Image is for reference,
please contact us to get the real picture

Part No :

SDR0703-180KL

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 18UH 700MA 280MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
SDR0703-180KL PDF
Availability
0 pieces
Unit Price
$0.31790

Current price of SDR0703-180KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR0703-180KL Specifications
Type Description
Series:SDR0703
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:18 µH
Tolerance:±10%
Current Rating (Amps):700 mA
Current - Saturation (Isat):1.05A
Shielding:Unshielded
DC Resistance (DCR):280mOhm Max
Q @ Freq:20 @ 2.52MHz
Frequency - Self Resonant:30MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.256" L x 0.177" W (6.50mm x 4.50mm)
Height - Seated (Max):0.106" (2.70mm)
