B78148S1563J009

B78148S1563J009

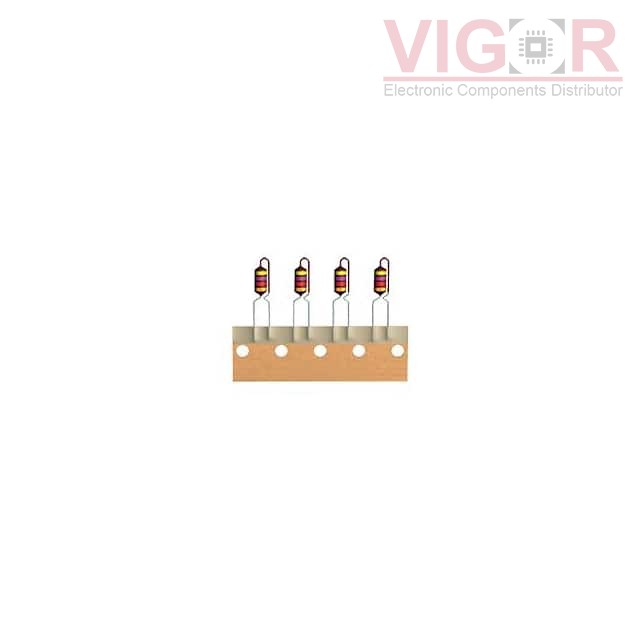

Image is for reference,
please contact us to get the real picture

Part No :

B78148S1563J009

Manufacturer
TDK EPCOS
Description
FIXED IND 56UH 430MA 1.23 OHM TH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
B78148S1563J009 PDF
Availability
0 pieces
Unit Price
$0.14320

Current price of B78148S1563J009 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B78148S1563J009 Specifications
Type Description
Series:BC
Package:Tape & Box (TB)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite Drum
Inductance:56 µH
Tolerance:±5%
Current Rating (Amps):430 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):1.23Ohm Max
Q @ Freq:40 @ 2.52MHz
Frequency - Self Resonant:7MHz
Ratings:-
Operating Temperature:-
Inductance Frequency - Test:2.52 MHz
Features:-
Mounting Type:Through Hole
Package / Case:Radial
Supplier Device Package:-
Size / Dimension:0.157" Dia x 0.362" L (4.00mm x 9.20mm)
Height - Seated (Max):-
