CF322513-120K

CF322513-120K

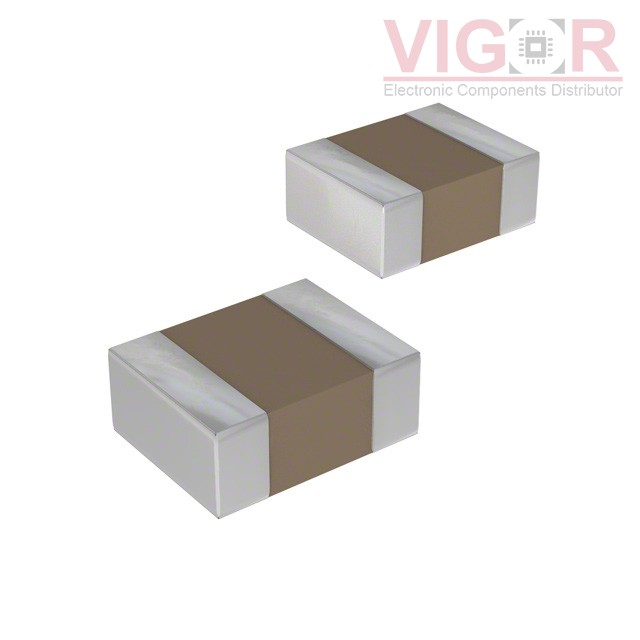

Image is for reference,
please contact us to get the real picture

Part No :

CF322513-120K

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 12UH 140MA 2.5 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
CF322513-120K PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of CF322513-120K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CF322513-120K Specifications
Type Description
Series:CF322513
Package:Tape & Reel (TR)
Part Status:Obsolete
Type:Multilayer
Material - Core:Ferrite
Inductance:12 µH
Tolerance:±10%
Current Rating (Amps):140 mA
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):2.5Ohm Max
Q @ Freq:30 @ 2.52MHz
Frequency - Self Resonant:33MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:2.52 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1210 (3225 Metric)
Supplier Device Package:1210
Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):0.059" (1.50mm)
