SRP8040-R22Y

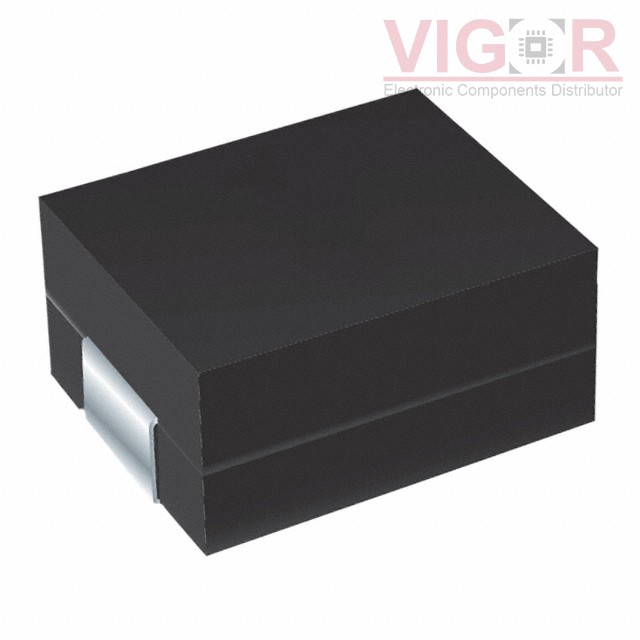

Image is for reference,
please contact us to get the real picture

Part No :: SRP8040-R22Y

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 220NH 25A 650 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 01 - Aug 05 2025

DataSheet: SRP8040-R22Y PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of SRP8040-R22Y is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SRP8040-R22Y Specifications

Type	Description
Series:	SRP8040
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	220 nH
Tolerance:	±30%
Current Rating (Amps):	25 A
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	650mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.323" L x 0.240" W (8.20mm x 6.10mm)
Height - Seated (Max):	0.177" (4.50mm)
