ELL-CTV820M

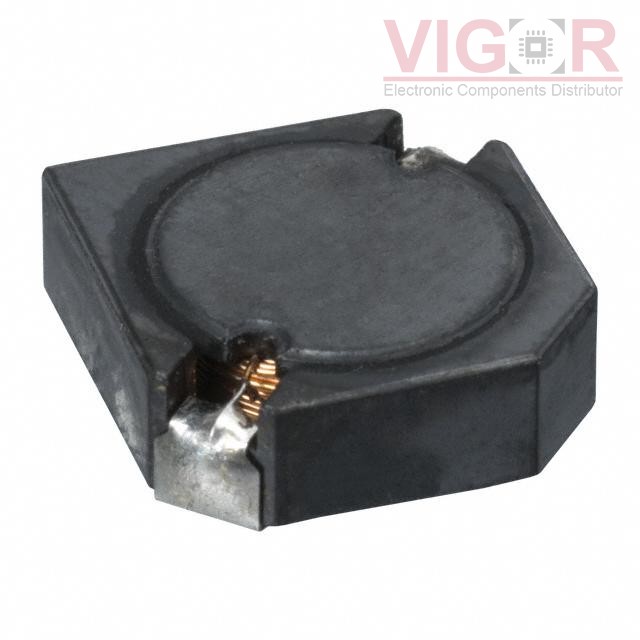

Image is for reference,
please contact us to get the real picture

Part No :: ELL-CTV820M

Manufacturer: Panasonic

Description: FIXED IND 82UH 1.4A 120 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 07 - Aug 11 2025

DataSheet: ELL-CTV820M PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of ELL-CTV820M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ELL-CTV820M Specifications

Type	Description
Series:	V
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	82 µH
Tolerance:	±20%
Current Rating (Amps):	1.4 A
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	120mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max):	0.177" (4.50mm)
