CF322513-8R2K

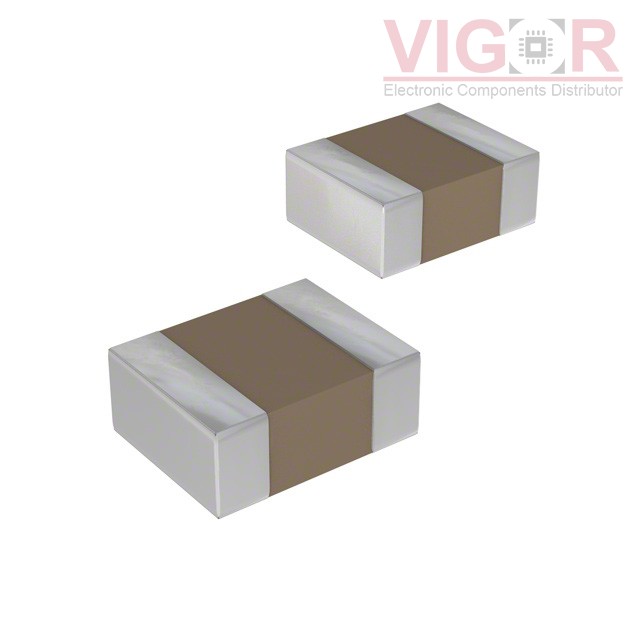

Image is for reference,
please contact us to get the real picture

Part No :: CF322513-8R2K

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 8.2UH 170MA 2 OHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 02 - Aug 06 2025

DataSheet: CF322513-8R2K PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of CF322513-8R2K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CF322513-8R2K Specifications

Type	Description
Series:	CF322513
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Multilayer
Material - Core:	Ferrite
Inductance:	8.2 µH
Tolerance:	±10%
Current Rating (Amps):	170 mA
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	2Ohm Max
Q @ Freq:	30 @ 7.96MHz
Frequency - Self Resonant:	40MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	7.96 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1210 (3225 Metric)
Supplier Device Package:	1210
Size / Dimension:	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):	0.059" (1.50mm)
