MGV0502R22M-10

MGV0502R22M-10

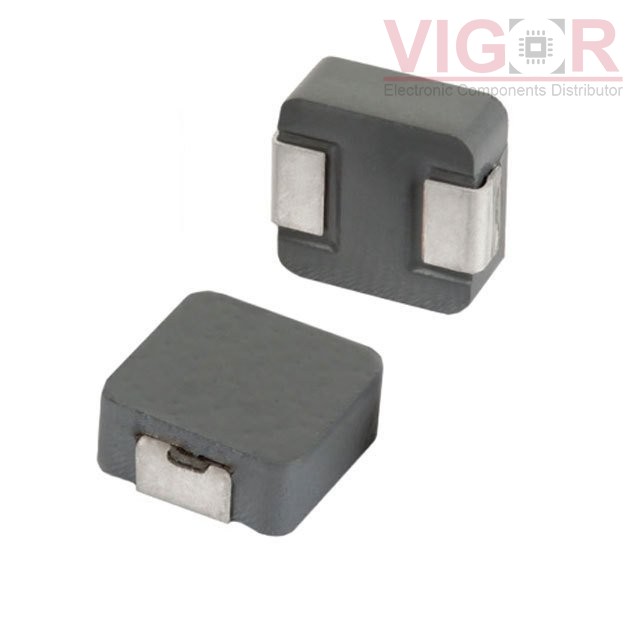

Image is for reference,
please contact us to get the real picture

Part No :

MGV0502R22M-10

Manufacturer
Laird - Performance Materials
Description
FIXED IND 220NH 15A 5.2 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 25 - Aug 29 2025
DataSheet
MGV0502R22M-10 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of MGV0502R22M-10 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MGV0502R22M-10 Specifications
Type Description
Series:MGV
Package:Tape & Reel (TR)
Part Status:Obsolete
Type:Molded
Material - Core:-
Inductance:220 nH
Tolerance:±20%
Current Rating (Amps):15 A
Current - Saturation (Isat):22A
Shielding:Shielded
DC Resistance (DCR):5.2mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.217" L x 0.201" W (5.50mm x 5.10mm)
Height - Seated (Max):0.091" (2.30mm)
