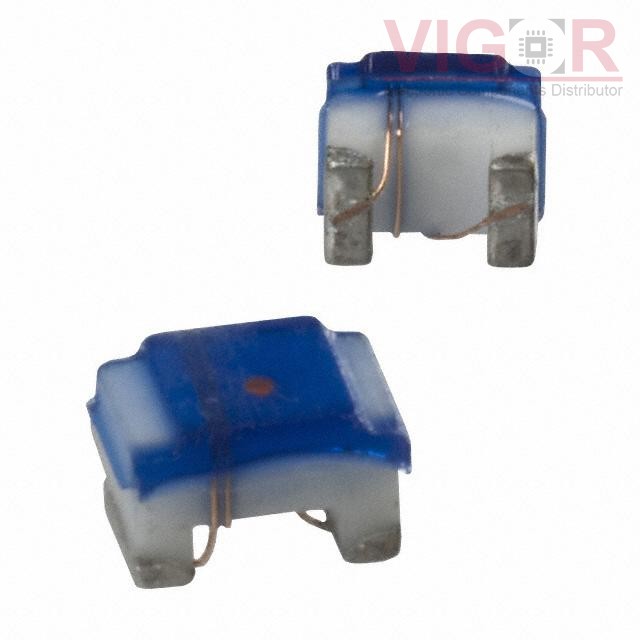

PM0805-12NM

PM0805-12NM

Image is for reference,
please contact us to get the real picture

Part No :

PM0805-12NM

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 12NH 600MA 150MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 16 - Aug 20 2025
DataSheet
PM0805-12NM PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PM0805-12NM is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM0805-12NM Specifications
Type Description
Series:PM0805
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:Wirewound
Material - Core:Ceramic
Inductance:12 nH
Tolerance:±20%
Current Rating (Amps):600 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):150mOhm Max
Q @ Freq:50 @ 500MHz
Frequency - Self Resonant:4GHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:250 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0805 (2012 Metric)
Supplier Device Package:0805 (2012 Metric)
Size / Dimension:0.083" L x 0.059" W (2.10mm x 1.50mm)
Height - Seated (Max):0.059" (1.50mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 77F181J

77F181J

FIXED IND 180UH 165MA 4.6 OHM TH
HOT CIH03T6N8JNC

CIH03T6N8JNC

FIXED IND 6.8NH 150MA 480 MOHM

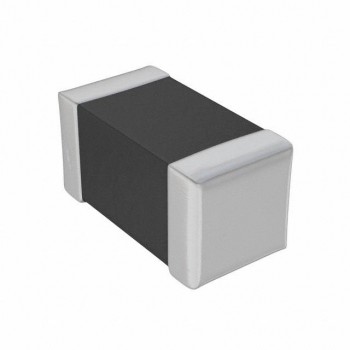

HOT 744902118
