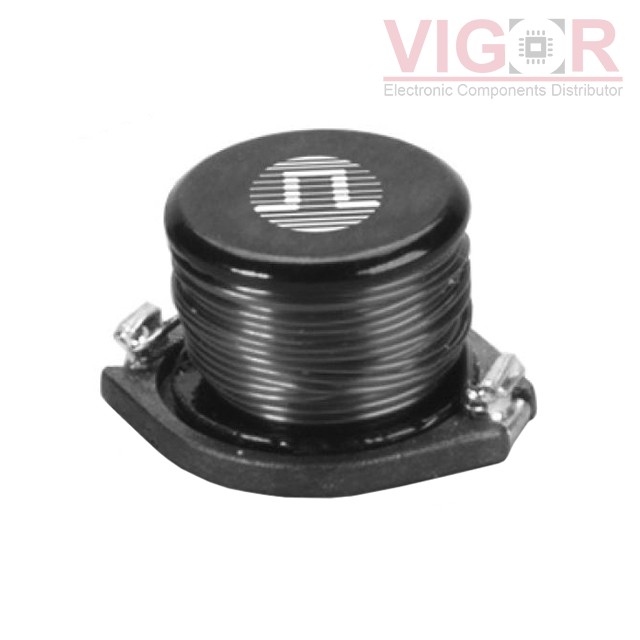

PF0504.222NLT

PF0504.222NLT

Image is for reference,
please contact us to get the real picture

Part No :

PF0504.222NLT

Manufacturer
PulseLarsen Antenna
Description
FIXED IND 2.2UH 14.7A 3.7 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 10 - Aug 14 2025
DataSheet
PF0504.222NLT PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PF0504.222NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PF0504.222NLT Specifications
Type Description
Series:PF0504NL
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:-
Inductance:2.2 µH
Tolerance:±20%
Current Rating (Amps):14.7 A
Current - Saturation (Isat):35A
Shielding:Unshielded
DC Resistance (DCR):3.7mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:-
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.730" L x 0.600" W (18.54mm x 15.24mm)
Height - Seated (Max):0.450" (11.43mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

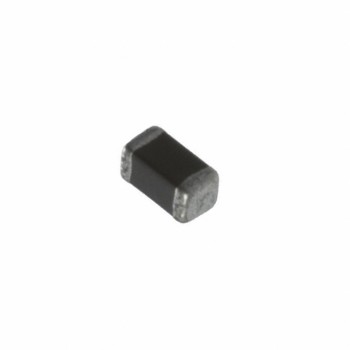

HOT ELJ-RF12NGFB

ELJ-RF12NGFB

FIXED IND 12NH 320MA 450 MOHM

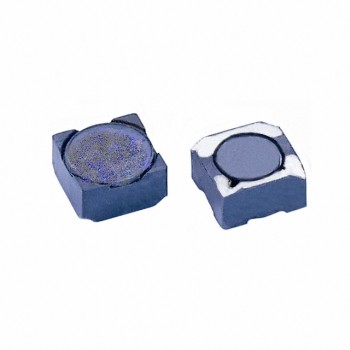

HOT SCMS5D25-220

SCMS5D25-220

FIXED IND 22UH 1.29A 190 MOHM

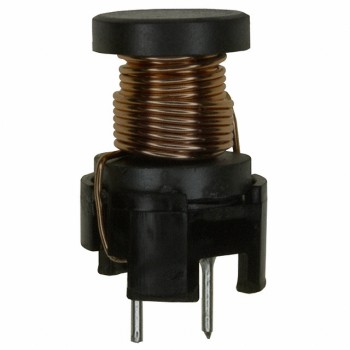

HOT ELC-18B471L
