CS321613-R47K

CS321613-R47K

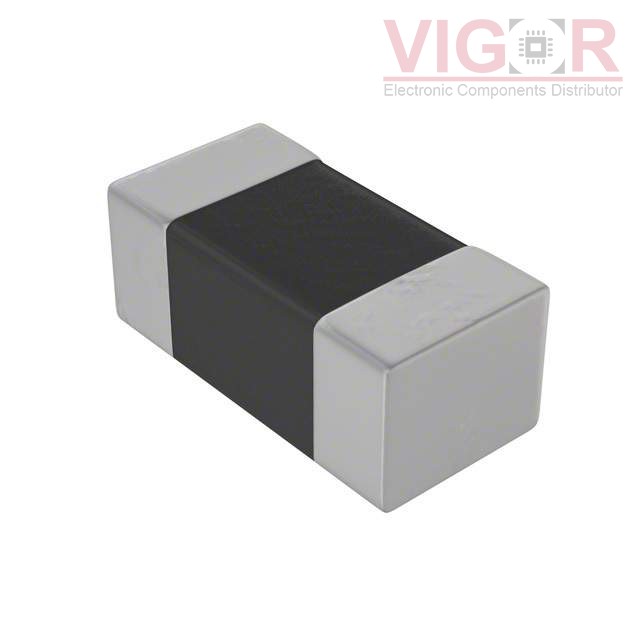

Image is for reference,
please contact us to get the real picture

Part No :

CS321613-R47K

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 470NH 200MA 300MOHM SM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
CS321613-R47K PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of CS321613-R47K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CS321613-R47K Specifications
Type Description
Series:CS321613
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:Multilayer
Material - Core:Ferrite
Inductance:470 nH
Tolerance:±10%
Current Rating (Amps):200 mA
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):300mOhm Max
Q @ Freq:50 @ 25MHz
Frequency - Self Resonant:125MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:25 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1206 (3216 Metric)
Supplier Device Package:1206 (3216 Metric)
Size / Dimension:0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max):0.059" (1.50mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT IMC0805ER47NJ

IMC0805ER47NJ

FIXED IND 47NH 385MA 350 MOHM

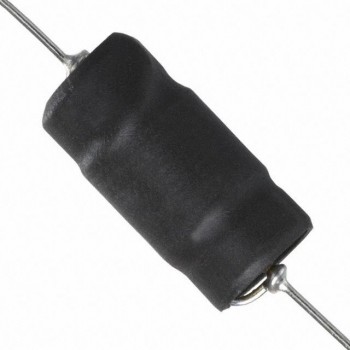

HOT 5900-104

5900-104

FIXED IND 100MH 70MA 82 OHM TH

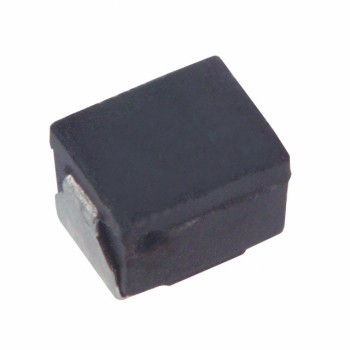

HOT ELJ-FA5R6JF
