B82422H1222K100

B82422H1222K100

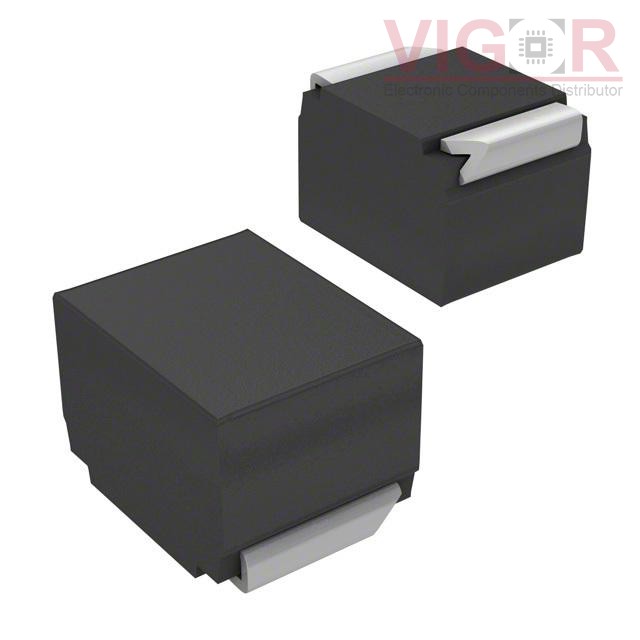

Image is for reference,
please contact us to get the real picture

Part No :

B82422H1222K100

Manufacturer
TDK EPCOS
Description
FIXED IND 2.2UH 560MA 330 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
B82422H1222K100 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of B82422H1222K100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82422H1222K100 Specifications
Type Description
Series:SIMID
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:Wirewound
Material - Core:Ferrite
Inductance:2.2 µH
Tolerance:±10%
Current Rating (Amps):560 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):330mOhm Max
Q @ Freq:10 @ 2.52MHz
Frequency - Self Resonant:85MHz
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 150°C
Inductance Frequency - Test:7.96 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:2-SMD, J-Lead
Supplier Device Package:1210 (3225 Metric)
Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):0.083" (2.10mm)
