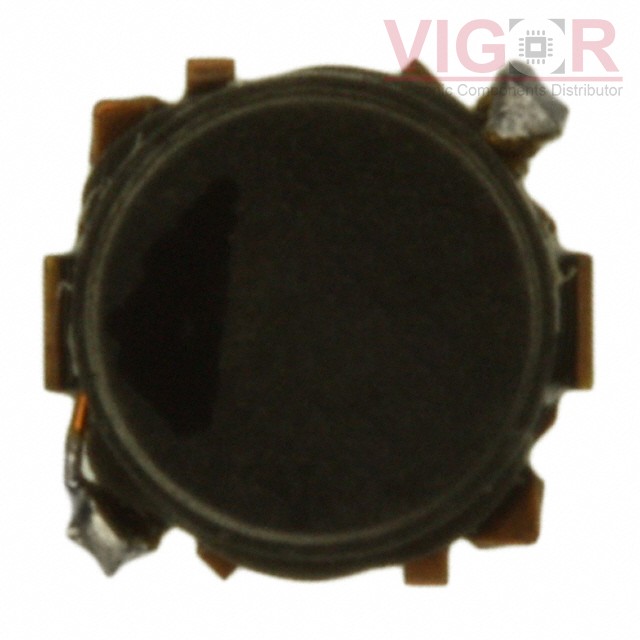

ELL-4LG100MA

Image is for reference,
please contact us to get the real picture

Part No :: ELL-4LG100MA

Manufacturer: Panasonic

Description: FIXED IND 10UH 950MA 200 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 11 - Aug 15 2025

DataSheet: ELL-4LG100MA PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of ELL-4LG100MA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ELL-4LG100MA Specifications

Type	Description
Series:	G
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	-
Inductance:	10 µH
Tolerance:	±20%
Current Rating (Amps):	950 mA
Current - Saturation (Isat):	800mA
Shielding:	Shielded
DC Resistance (DCR):	200mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max):	0.071" (1.80mm)
