SCH4312-101

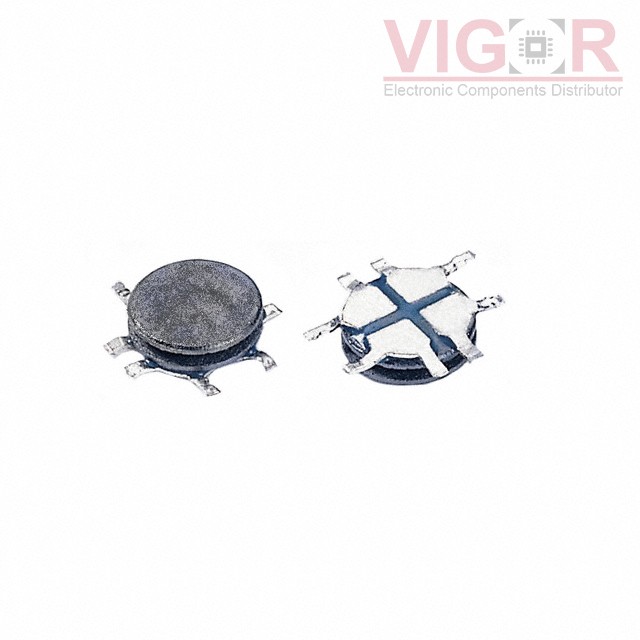

Image is for reference,
please contact us to get the real picture

Part No :: SCH4312-101

Manufacturer: Signal Transformer

Description: FIXED IND 100UH 260MA 3.36 OHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 23 - Aug 27 2025

DataSheet: SCH4312-101 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of SCH4312-101 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SCH4312-101 Specifications

Type	Description
Series:	SCH4312
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	-
Material - Core:	-
Inductance:	100 µH
Tolerance:	±20%
Current Rating (Amps):	260 mA
Current - Saturation (Isat):	180mA
Shielding:	Unshielded
DC Resistance (DCR):	3.36Ohm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.248" L x 0.220" W (6.30mm x 5.60mm)
Height - Seated (Max):	0.051" (1.30mm)
