ELJ-PC220KF

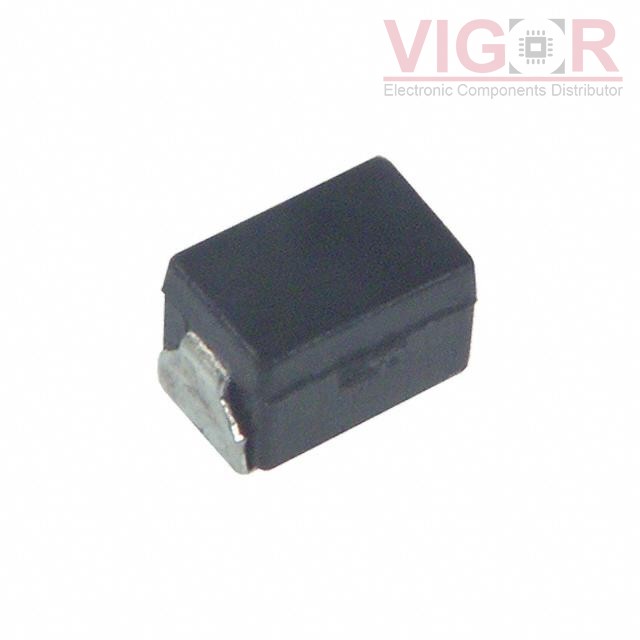

Image is for reference,
please contact us to get the real picture

Part No :: ELJ-PC220KF

Manufacturer: Panasonic

Description: FIXED IND 22UH 160MA 4 OHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 04 - Aug 08 2025

DataSheet: ELJ-PC220KF PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of ELJ-PC220KF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ELJ-PC220KF Specifications

Type	Description
Series:	PC
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	-
Inductance:	22 µH
Tolerance:	±10%
Current Rating (Amps):	160 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	4Ohm Max
Q @ Freq:	20 @ 2.52MHz
Frequency - Self Resonant:	18MHz
Ratings:	-
Operating Temperature:	-20°C ~ 85°C
Inductance Frequency - Test:	2.52 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1008 (2520 Metric)
Supplier Device Package:	1008 (2520 Metric)
Size / Dimension:	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):	0.071" (1.80mm)
