77F821J

77F821J

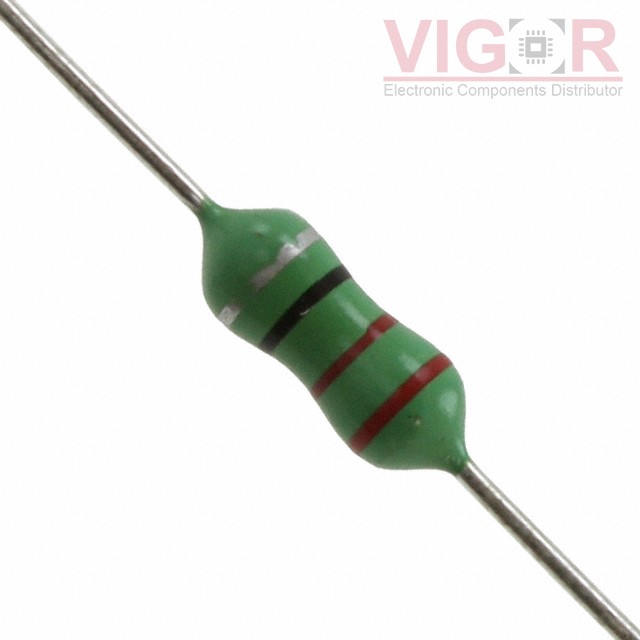

Image is for reference,
please contact us to get the real picture

Part No :

77F821J

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 820UH 105MA 10.5OHM TH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 21 - Aug 25 2025
DataSheet
77F821J PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 77F821J is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

77F821J Specifications
Type Description
Series:77F
Package:Bulk
Part Status:Obsolete
Type:Wirewound
Material - Core:Ferrite
Inductance:820 µH
Tolerance:±5%
Current Rating (Amps):105 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):10.5Ohm Max
Q @ Freq:55 @ 796kHz
Frequency - Self Resonant:1.85MHz
Ratings:-
Operating Temperature:-55°C ~ 105°C
Inductance Frequency - Test:796 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Axial
Supplier Device Package:-
Size / Dimension:0.157" Dia x 0.410" L (3.99mm x 10.41mm)
Height - Seated (Max):-
