IMS05ER6R8K

IMS05ER6R8K

Image is for reference,
please contact us to get the real picture

Part No :

IMS05ER6R8K

Manufacturer
Vishay / Dale
Description
FIXED IND 6.8UH 280MA 1.02 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 07 - Aug 11 2025
DataSheet
IMS05ER6R8K PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of IMS05ER6R8K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IMS05ER6R8K Specifications
Type Description
Series:IMS-5
Package:-
Part Status:Obsolete
Type:Molded
Material - Core:Iron Powder
Inductance:6.8 µH
Tolerance:±10%
Current Rating (Amps):280 mA
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):1.02Ohm Max
Q @ Freq:50 @ 7.9MHz
Frequency - Self Resonant:55MHz
Ratings:-
Operating Temperature:-55°C ~ 105°C
Inductance Frequency - Test:7.9 MHz
Features:-
Mounting Type:Through Hole
Package / Case:Axial
Supplier Device Package:-
Size / Dimension:0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max):-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

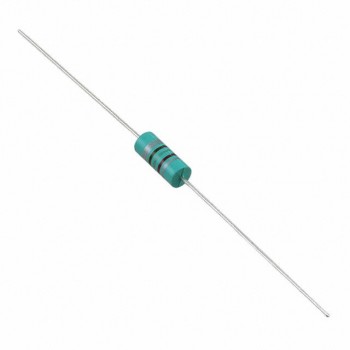

HOT IMS05BH470J

IMS05BH470J

FIXED IND 47UH 195MA 2.11 OHM TH

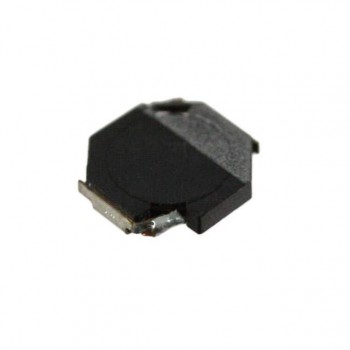

HOT VLF5014AT-150MR76

VLF5014AT-150MR76

FIXED IND 15UH 760MA 320 MOHM

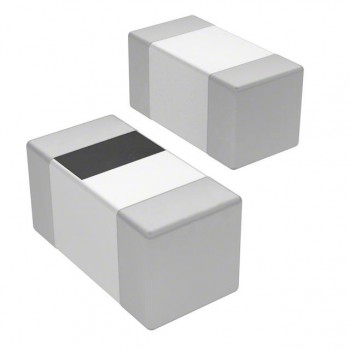

HOT CIH05Q3N0SNC
