IMC0805ERR10K

IMC0805ERR10K

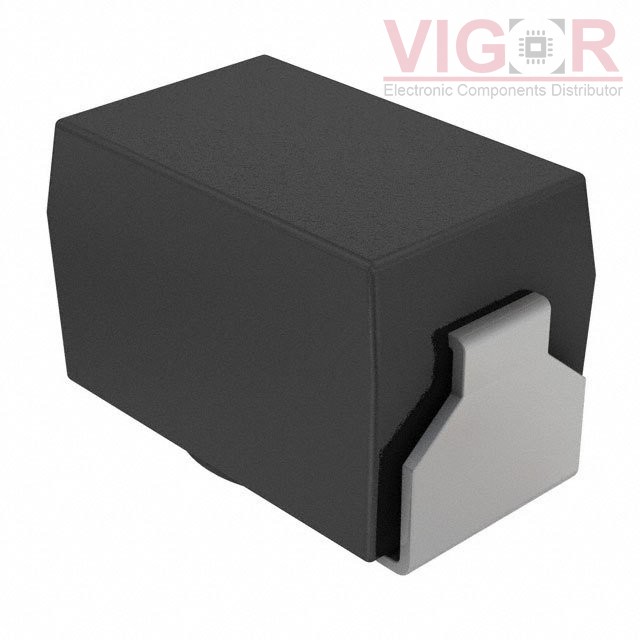

Image is for reference,
please contact us to get the real picture

Part No :

IMC0805ERR10K

Manufacturer
Vishay / Dale
Description
FIXED IND 100NH 285MA 660 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 10 - Aug 14 2025
DataSheet
IMC0805ERR10K PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of IMC0805ERR10K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IMC0805ERR10K Specifications
Type Description
Series:IMC-0805
Package:Tape & Reel (TR)
Part Status:Obsolete
Type:Wirewound
Material - Core:Non-Magnetic
Inductance:100 nH
Tolerance:±10%
Current Rating (Amps):285 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):660mOhm Max
Q @ Freq:8 @ 25.2MHz
Frequency - Self Resonant:800MHz
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:25.2 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0805 (2012 Metric)
Supplier Device Package:0805 (2012 Metric)
Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):0.061" (1.55mm)
