ELL-ATV560M

ELL-ATV560M

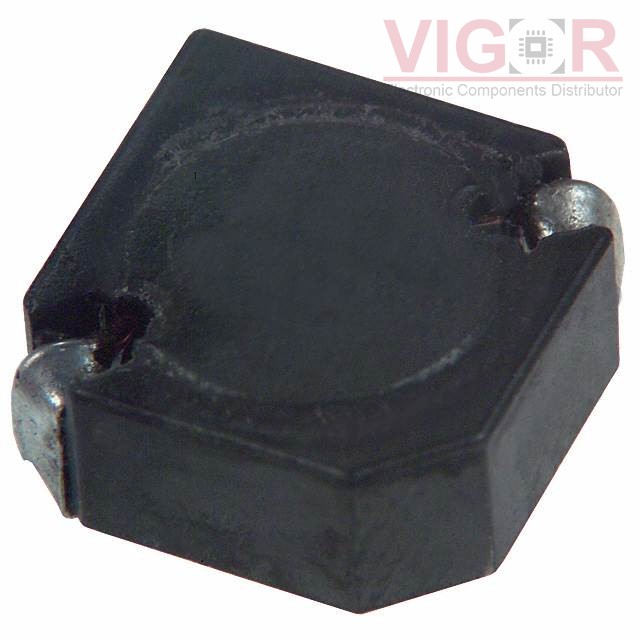

Image is for reference,
please contact us to get the real picture

Part No :

ELL-ATV560M

Manufacturer
Panasonic
Description
FIXED IND 56UH 1.35A 100 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 11 - Aug 15 2025
DataSheet
ELL-ATV560M PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of ELL-ATV560M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ELL-ATV560M Specifications
Type Description
Series:V
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:Wirewound
Material - Core:Ferrite
Inductance:56 µH
Tolerance:±20%
Current Rating (Amps):1.35 A
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):100mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max):0.177" (4.50mm)
