NLC565050T-561K-PF

NLC565050T-561K-PF

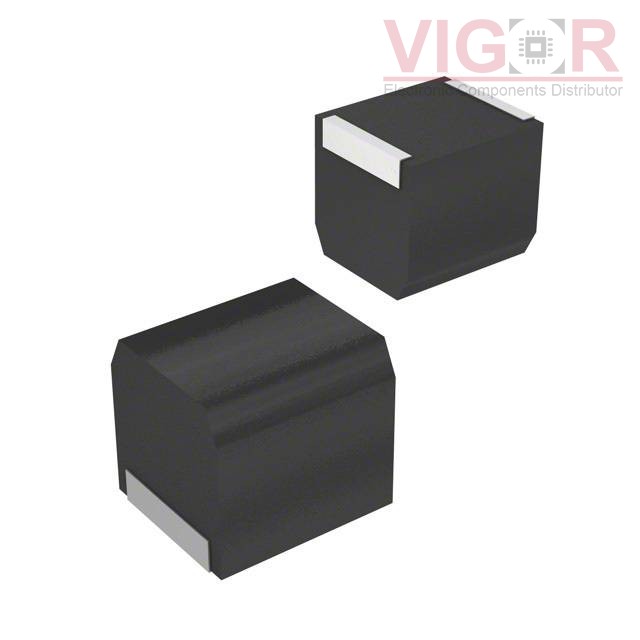

Image is for reference,
please contact us to get the real picture

Part No :

NLC565050T-561K-PF

Manufacturer
TDK Corporation
Description
FIXED IND 560UH 110MA 8.5 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 14 - Aug 18 2025
DataSheet
NLC565050T-561K-PF PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of NLC565050T-561K-PF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NLC565050T-561K-PF Specifications
Type Description
Series:NLC
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:Wirewound
Material - Core:-
Inductance:560 µH
Tolerance:±10%
Current Rating (Amps):110 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):8.5Ohm Max
Q @ Freq:20 @ 796kHz
Frequency - Self Resonant:2.4MHz
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:796 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:2220 (5650 Metric)
Supplier Device Package:-
Size / Dimension:0.220" L x 0.197" W (5.60mm x 5.00mm)
Height - Seated (Max):0.209" (5.30mm)
