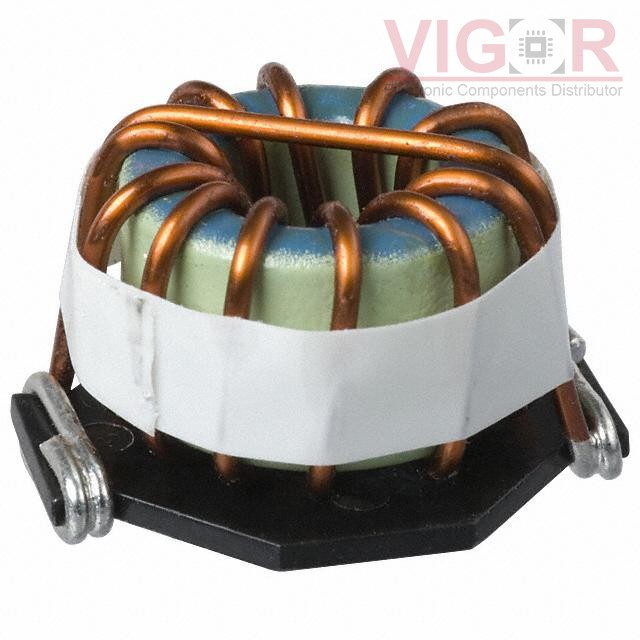

PM2120-560K

PM2120-560K

Image is for reference,
please contact us to get the real picture

Part No :

PM2120-560K

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 56UH 7.9A 21 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 17 - Aug 21 2025
DataSheet
PM2120-560K PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PM2120-560K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM2120-560K Specifications
Type Description
Series:PM2120
Package:Bulk
Part Status:Obsolete
Type:Toroidal
Material - Core:Iron
Inductance:56 µH
Tolerance:±10%
Current Rating (Amps):7.9 A
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):21mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 105°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:1.201" L x 1.000" W (30.50mm x 25.40mm)
Height - Seated (Max):0.790" (20.07mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT SCRH73B-101

SCRH73B-101

FIXED IND 100UH 500MA 790 MOHM
HOT SRR1280-271V4K

SRR1280-271V4K

FIXED IND 270UH 1.2A 450MOHM SMD

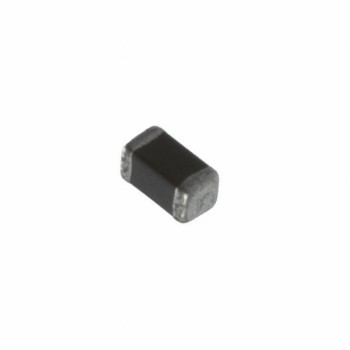

HOT ELJ-RF15NJF
