ELC-09D120DF

ELC-09D120DF

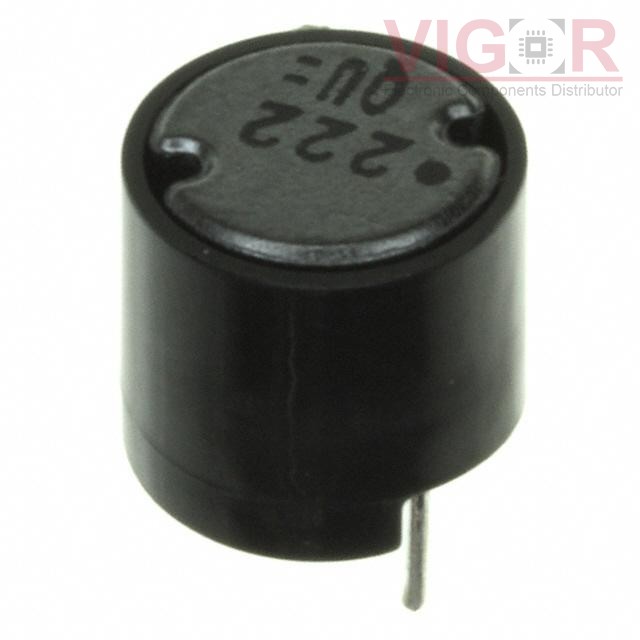

Image is for reference,
please contact us to get the real picture

Part No :

ELC-09D120DF

Manufacturer
Panasonic
Description
FIXED IND 12UH 2.3A 31 MOHM TH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 15 - Aug 19 2025
DataSheet
ELC-09D120DF PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of ELC-09D120DF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ELC-09D120DF Specifications
Type Description
Series:09D
Package:Tape & Reel (TR)
Part Status:Obsolete
Type:Wirewound
Material - Core:-
Inductance:12 µH
Tolerance:±20%
Current Rating (Amps):2.3 A
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):31mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-
Inductance Frequency - Test:10 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Radial, Vertical Cylinder
Supplier Device Package:-
Size / Dimension:0.374" Dia (9.50mm)
Height - Seated (Max):0.350" (8.90mm)
