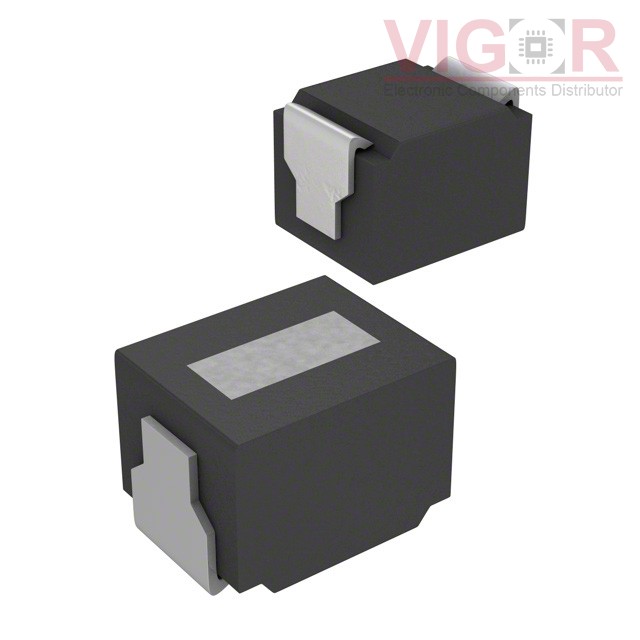

CM252016-56NKL

Image is for reference,
please contact us to get the real picture

Part No :: CM252016-56NKL

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 56NH 200MA 630MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 02 - Aug 06 2025

DataSheet: CM252016-56NKL PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of CM252016-56NKL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CM252016-56NKL Specifications

Type	Description
Series:	CM252016
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Polymer
Inductance:	56 nH
Tolerance:	±10%
Current Rating (Amps):	200 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	630mOhm Max
Q @ Freq:	15 @ 100MHz
Frequency - Self Resonant:	670MHz
Ratings:	-
Operating Temperature:	-20°C ~ 100°C
Inductance Frequency - Test:	100 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):	0.063" (1.60mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

PM0603-18NJ

FIXED IND 18NH 700MA 170MOHM SMD

HOT

MHQ0402P3N1BT000

FIXED IND 3.1NH 200MA 500 MOHM

HOT

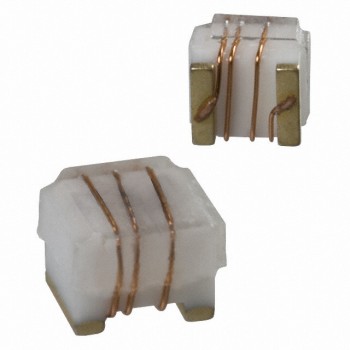

PM1008-8R2K
