2200HT-561-V

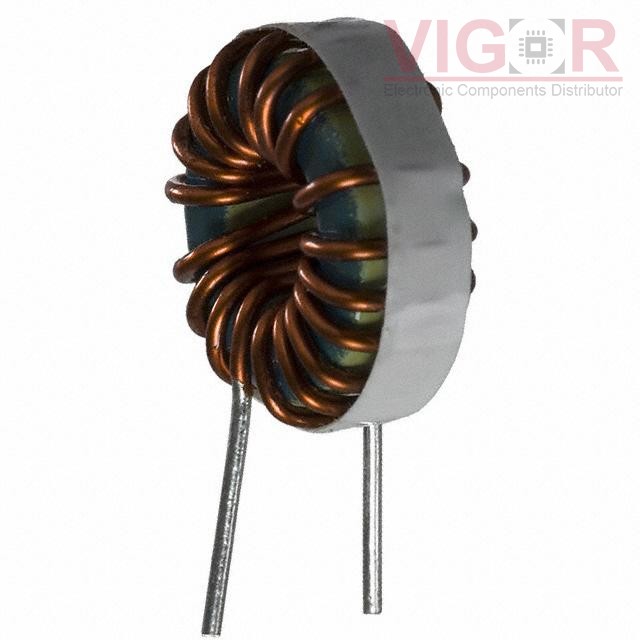

Image is for reference,
please contact us to get the real picture

Part No :: 2200HT-561-V

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 560UH 2.7A 230 MOHM TH

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 05 - Aug 09 2025

DataSheet: 2200HT-561-V PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of 2200HT-561-V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2200HT-561-V Specifications

Type	Description
Series:	2200HT
Package:	Bulk
Part Status:	Obsolete
Type:	Toroidal
Material - Core:	Iron Powder
Inductance:	560 µH
Tolerance:	±15%
Current Rating (Amps):	2.7 A
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	230mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 200°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical (Open)
Supplier Device Package:	-
Size / Dimension:	0.950" Dia x 0.550" W (24.13mm x 13.97mm)
Height - Seated (Max):	-
