2306-V

2306-V

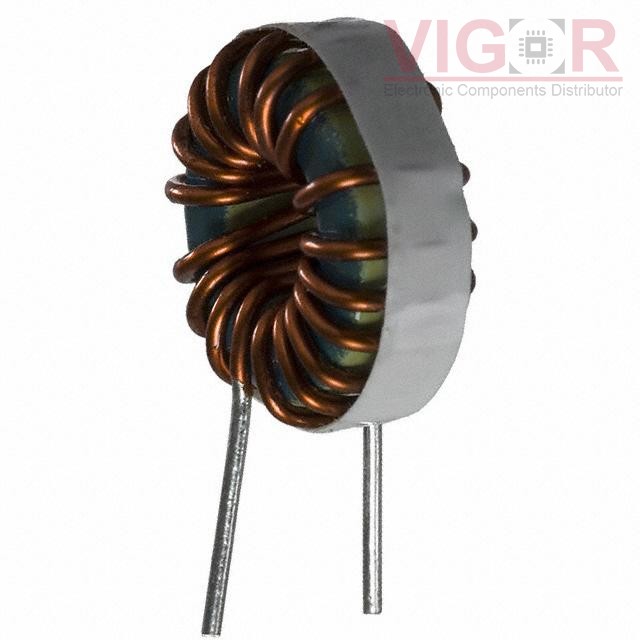

Image is for reference,
please contact us to get the real picture

Part No :

2306-V

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 27UH 15.6A 8 MOHM TH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 26 - Aug 30 2025
DataSheet
2306-V PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 2306-V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2306-V Specifications
Type Description
Series:2300
Package:Bulk
Part Status:Obsolete
Type:Toroidal
Material - Core:Iron Powder
Inductance:27 µH
Tolerance:±15%
Current Rating (Amps):15.6 A
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):8mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 105°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Radial, Vertical (Open)
Supplier Device Package:-
Size / Dimension:1.280" Dia x 0.650" W (32.51mm x 16.51mm)
Height - Seated (Max):-
