SCH74-560

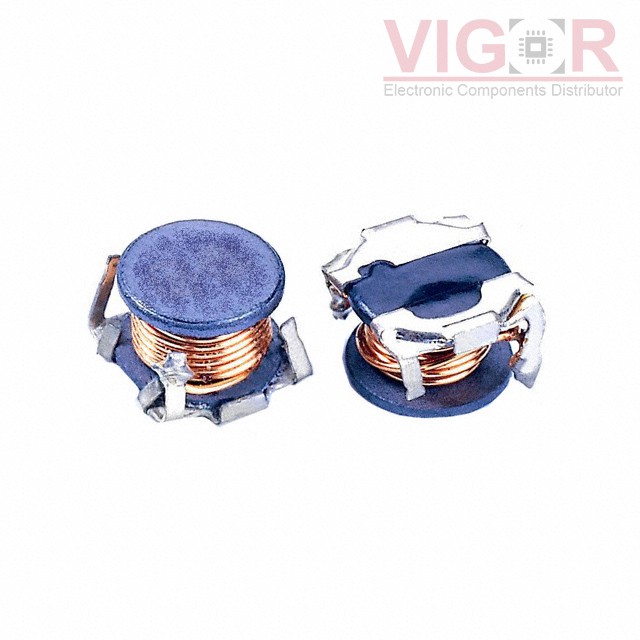

Image is for reference,
please contact us to get the real picture

Part No :: SCH74-560

Manufacturer: Signal Transformer

Description: FIXED IND 56UH 1.43A 260 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 04 - Aug 08 2025

DataSheet: SCH74-560 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of SCH74-560 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SCH74-560 Specifications

Type	Description
Series:	SCH74
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	-
Inductance:	56 µH
Tolerance:	±10%
Current Rating (Amps):	1.43 A
Current - Saturation (Isat):	1.15A
Shielding:	Unshielded
DC Resistance (DCR):	260mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.315" L x 0.287" W (8.00mm x 7.30mm)
Height - Seated (Max):	0.205" (5.20mm)
