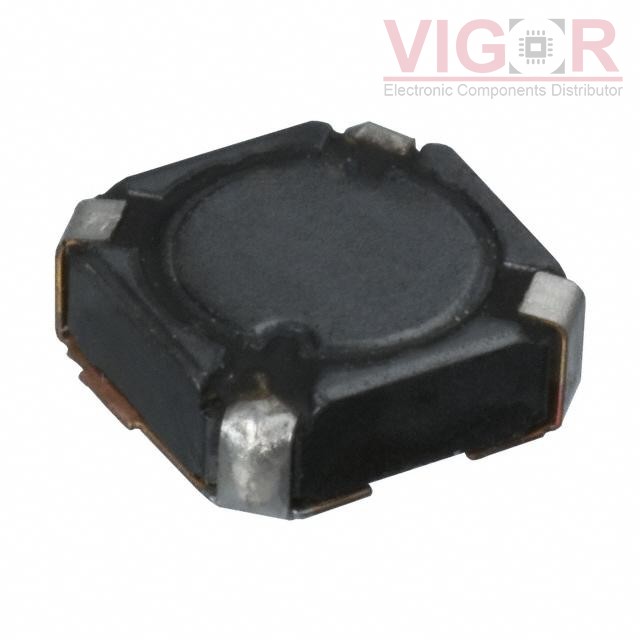

ELL-5PM1R8N

ELL-5PM1R8N

Image is for reference,
please contact us to get the real picture

Part No :

ELL-5PM1R8N

Manufacturer
Panasonic
Description
FIXED IND 1.8UH 2.3A 27 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
ELL-5PM1R8N PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of ELL-5PM1R8N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ELL-5PM1R8N Specifications
Type Description
Series:M
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:Wirewound
Material - Core:-
Inductance:1.8 µH
Tolerance:±30%
Current Rating (Amps):2.3 A
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):27mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.205" L x 0.205" W (5.20mm x 5.20mm)
Height - Seated (Max):0.079" (2.00mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT CF453215-R15K

CF453215-R15K

FIXED IND 150NH 730MA 220MOHM SM
HOT 2312-V

2312-V

FIXED IND 100UH 7A 37 MOHM TH

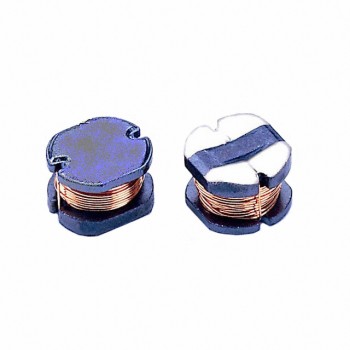

HOT SC105-821
