TSL1315RA-221K1R7-PF

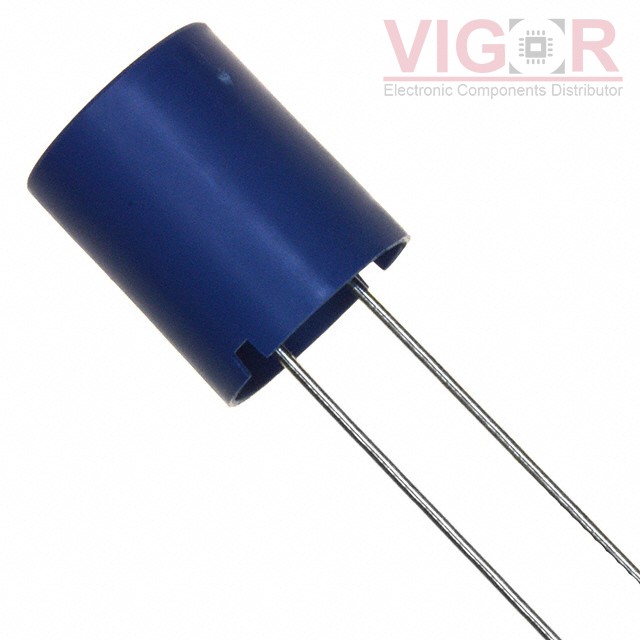

Image is for reference,
please contact us to get the real picture

Part No :: TSL1315RA-221K1R7-PF

Manufacturer: TDK Corporation

Description: FIXED IND 220UH 1.7A 200 MOHM TH

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 17 - Aug 21 2025

DataSheet: TSL1315RA-221K1R7-PF PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of TSL1315RA-221K1R7-PF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TSL1315RA-221K1R7-PF Specifications

Type	Description
Series:	TSL
Package:	Cut Tape (CT)Tape & Box (TB)
Part Status:	Obsolete
Type:	-
Material - Core:	-
Inductance:	220 µH
Tolerance:	±10%
Current Rating (Amps):	1.7 A
Current - Saturation (Isat):	2.7A
Shielding:	Unshielded
DC Resistance (DCR):	200mOhm Max
Q @ Freq:	40 @ 796kHz
Frequency - Self Resonant:	2.2MHz
Ratings:	-
Operating Temperature:	-20°C ~ 85°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical Cylinder
Supplier Device Package:	-
Size / Dimension:	0.551" Dia (14.00mm)
Height - Seated (Max):	0.669" (17.00mm)
