ELL-6PM1R0N

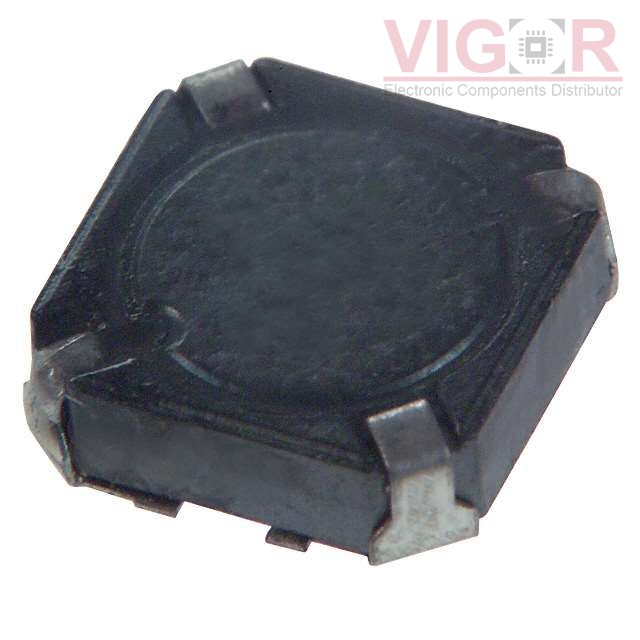

Image is for reference,
please contact us to get the real picture

Part No :: ELL-6PM1R0N

Manufacturer: Panasonic

Description: FIXED IND 1UH 2.7A 16 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 23 - Aug 27 2025

DataSheet: ELL-6PM1R0N PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of ELL-6PM1R0N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ELL-6PM1R0N Specifications

Type	Description
Series:	M
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	-
Inductance:	1 µH
Tolerance:	±30%
Current Rating (Amps):	2.7 A
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	16mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max):	0.079" (2.00mm)
