IMC0805ER1R0K

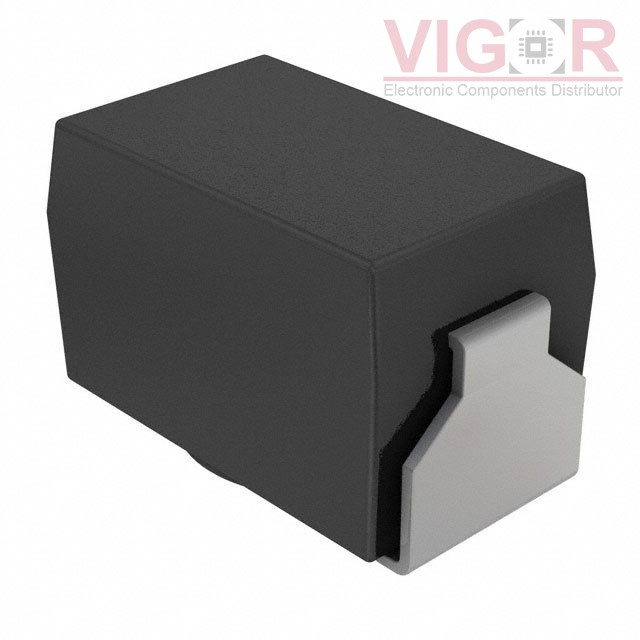

Image is for reference,
please contact us to get the real picture

Part No :: IMC0805ER1R0K

Manufacturer: Vishay / Dale

Description: FIXED IND 1UH 120MA 2.98 OHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 02 - Aug 06 2025

DataSheet: IMC0805ER1R0K PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of IMC0805ER1R0K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IMC0805ER1R0K Specifications

Type	Description
Series:	IMC-0805
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Non-Magnetic
Inductance:	1 µH
Tolerance:	±10%
Current Rating (Amps):	120 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	2.98Ohm Max
Q @ Freq:	8 @ 7.96MHz
Frequency - Self Resonant:	80MHz
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	7.96 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805 (2012 Metric)
Size / Dimension:	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):	0.061" (1.55mm)
