CM160808-R22JL

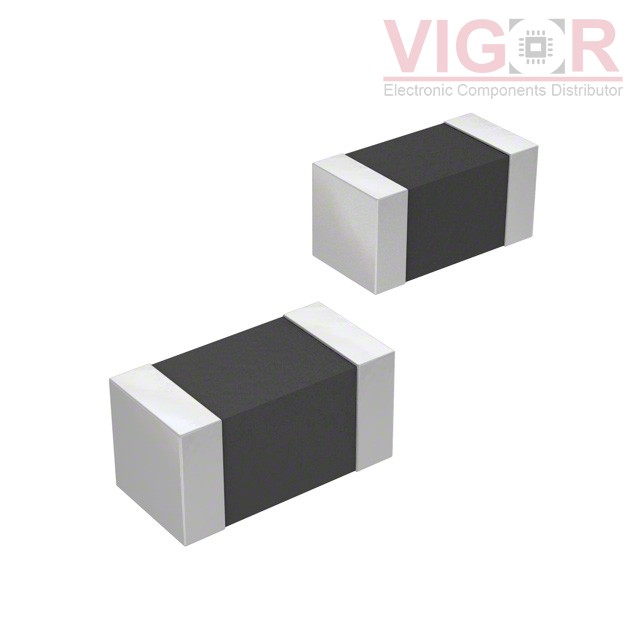

Image is for reference,
please contact us to get the real picture

Part No :: CM160808-R22JL

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 220NH 70MA 7.5 OHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 17 - Aug 21 2025

DataSheet: CM160808-R22JL PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of CM160808-R22JL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CM160808-R22JL Specifications

Type	Description
Series:	CM160808
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Alumina
Inductance:	220 nH
Tolerance:	±5%
Current Rating (Amps):	70 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	7.5Ohm Max
Q @ Freq:	4 @ 25.2MHz
Frequency - Self Resonant:	900MHz
Ratings:	-
Operating Temperature:	-40°C ~ 100°C
Inductance Frequency - Test:	25.2 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603 (1608 Metric)
Size / Dimension:	0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max):	0.037" (0.94mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

SRR1208-150M

FIXED IND 15UH 4A 36 MOHM SMD

HOT

SC5040FH-680

FIXED IND 68UH 3.4A 67 MOHM SMD

HOT

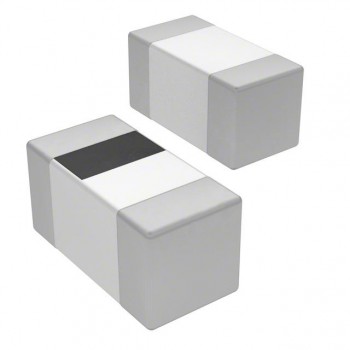

CIH05T3N9CNC
