CM100505-2N2DL

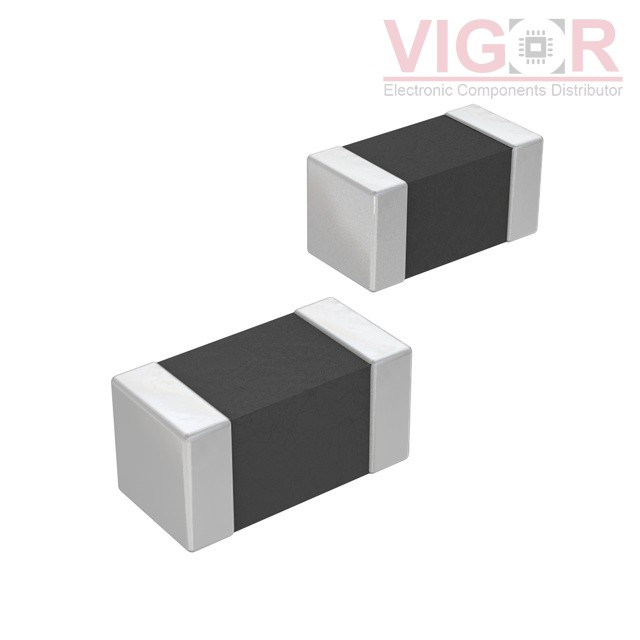

Image is for reference,
please contact us to get the real picture

Part No :: CM100505-2N2DL

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 2.2NH 400MA 90MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 05 - Aug 09 2025

DataSheet: CM100505-2N2DL PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of CM100505-2N2DL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CM100505-2N2DL Specifications

Type	Description
Series:	CM100505
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Alumina
Inductance:	2.2 nH
Tolerance:	±0.3nH
Current Rating (Amps):	400 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	90mOhm Max
Q @ Freq:	8 @ 100MHz
Frequency - Self Resonant:	6GHz
Ratings:	-
Operating Temperature:	-40°C ~ 100°C
Inductance Frequency - Test:	100 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0402 (1005 Metric)
Supplier Device Package:	0402 (1005 Metric)
Size / Dimension:	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max):	0.024" (0.60mm)

Please confirm the specifications of the products when ordering.
