NLC565050T-2R2K-PF

NLC565050T-2R2K-PF

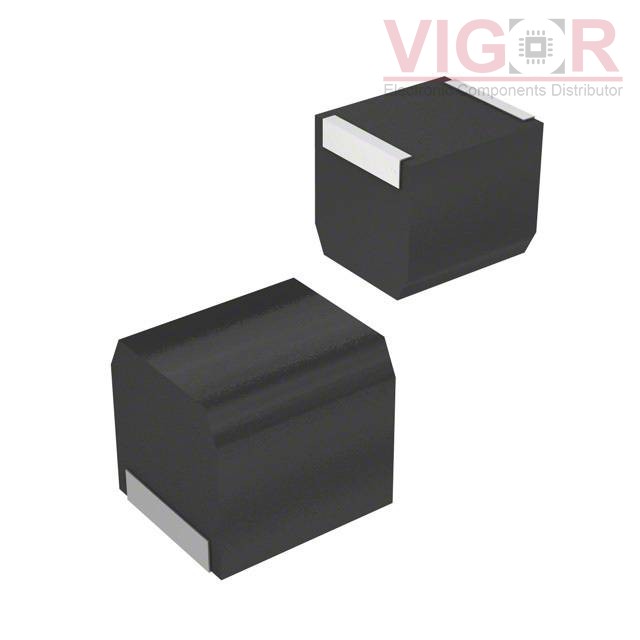

Image is for reference,
please contact us to get the real picture

Part No :

NLC565050T-2R2K-PF

Manufacturer
TDK Corporation
Description
FIXED IND 2.2UH 1.3A 60 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 12 - Aug 16 2025
DataSheet
NLC565050T-2R2K-PF PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of NLC565050T-2R2K-PF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NLC565050T-2R2K-PF Specifications
Type Description
Series:NLC
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:Wirewound
Material - Core:-
Inductance:2.2 µH
Tolerance:±10%
Current Rating (Amps):1.3 A
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):60mOhm Max
Q @ Freq:10 @ 7.96MHz
Frequency - Self Resonant:42MHz
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:7.96 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:2220 (5650 Metric)
Supplier Device Package:-
Size / Dimension:0.220" L x 0.197" W (5.60mm x 5.00mm)
Height - Seated (Max):0.209" (5.30mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT B82442T1122K000

B82442T1122K000

FIXED IND 1.2UH 3.09A 28 MOHM
HOT PM1210-820J

PM1210-820J

FIXED IND 82UH 45MA 10 OHM SMD

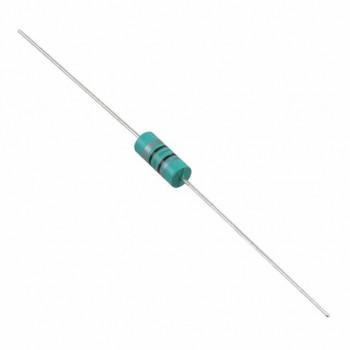

HOT IMS05BH470K
