SCH114-220

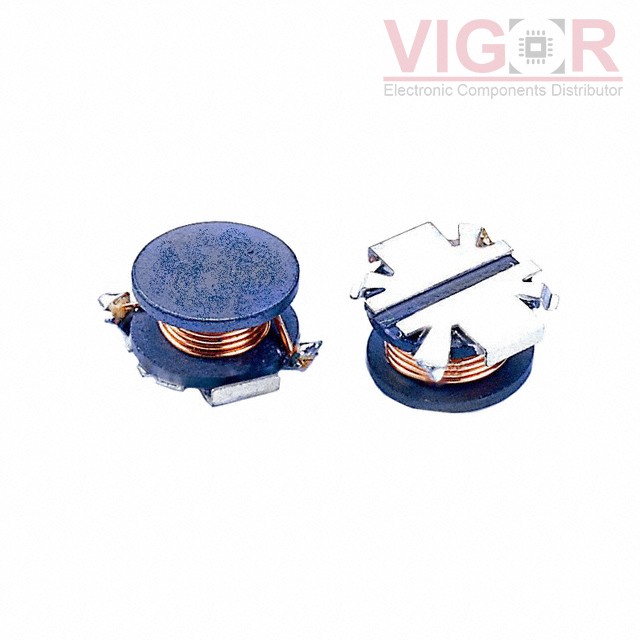

Image is for reference,
please contact us to get the real picture

Part No :: SCH114-220

Manufacturer: Signal Transformer

Description: FIXED IND 22UH 2.37A 100 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 05 - Aug 09 2025

DataSheet: SCH114-220 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of SCH114-220 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SCH114-220 Specifications

Type	Description
Series:	SCH114
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	2.37 A
Current - Saturation (Isat):	3A
Shielding:	Unshielded
DC Resistance (DCR):	100mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.409" L x 0.409" W (10.40mm x 10.40mm)
Height - Seated (Max):	0.193" (4.90mm)
