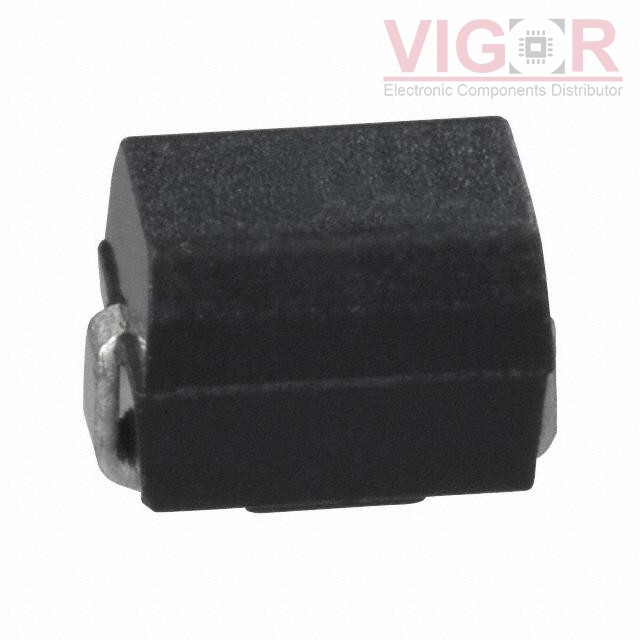

PM1812-R68K

Image is for reference,
please contact us to get the real picture

Part No :: PM1812-R68K

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 680NH 500MA 400MOHM SM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 05 - Aug 09 2025

DataSheet: PM1812-R68K PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of PM1812-R68K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM1812-R68K Specifications

Type	Description
Series:	PM1812
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	-
Material - Core:	Ferrite
Inductance:	680 nH
Tolerance:	±10%
Current Rating (Amps):	500 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	400mOhm Max
Q @ Freq:	40 @ 25.2MHz
Frequency - Self Resonant:	135MHz
Ratings:	-
Operating Temperature:	-40°C ~ 100°C
Inductance Frequency - Test:	25.2 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1812 (4532 Metric)
Supplier Device Package:	1812
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):	0.134" (3.40mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

LQH3NPN4R7NG0L

FIXED IND 4.7UH 925MA 312 MOHM

HOT

CLF12555T-150M-CA

FIXED IND 15UH 3.2A 37.2 MOHM

HOT

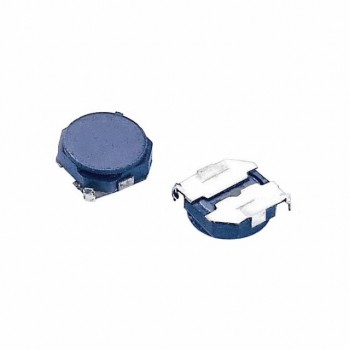

SCRH4D14R-220
