NL565050T-682J-PF

NL565050T-682J-PF

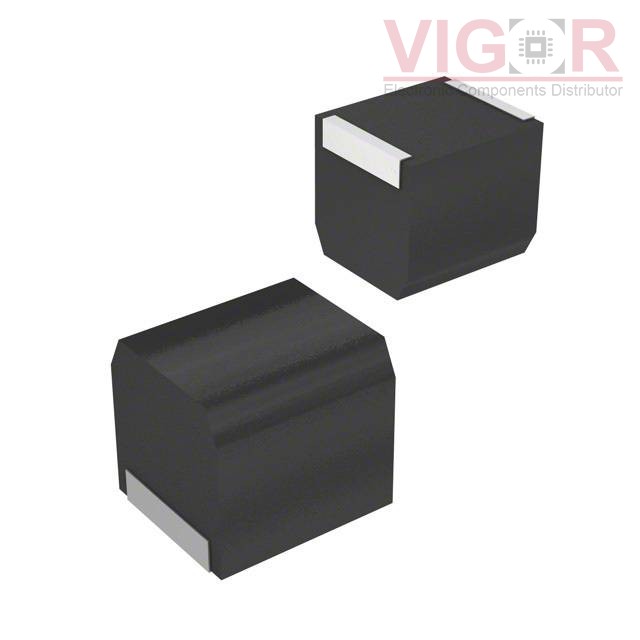

Image is for reference,
please contact us to get the real picture

Part No :

NL565050T-682J-PF

Manufacturer
TDK Corporation
Description
FIXED IND 6.8MH 30MA 110 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 09 - Aug 13 2025
DataSheet
NL565050T-682J-PF PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of NL565050T-682J-PF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NL565050T-682J-PF Specifications
Type Description
Series:NL
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:Wirewound
Material - Core:-
Inductance:6.8 mH
Tolerance:±5%
Current Rating (Amps):30 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):110Ohm Max
Q @ Freq:30 @ 252kHz
Frequency - Self Resonant:700kHz
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:252 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:2220 (5650 Metric)
Supplier Device Package:-
Size / Dimension:0.220" L x 0.197" W (5.60mm x 5.00mm)
Height - Seated (Max):0.209" (5.30mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT IMS05SHR68K

IMS05SHR68K

FIXED IND 680NH 420MA 450 MOHM
HOT SCPH73B-391

SCPH73B-391

FIXED IND 390UH 320MA 3 OHM SMD

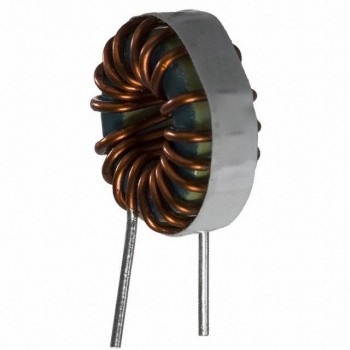

HOT 2300HT-150-V
