PM54-680K

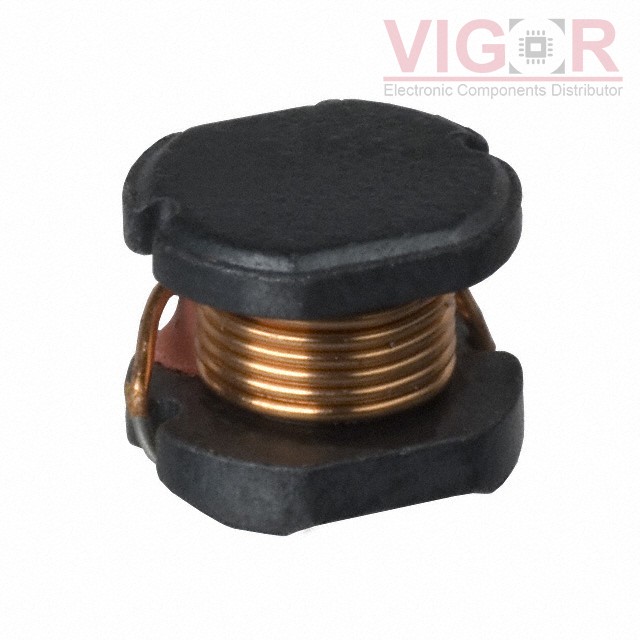

Image is for reference,
please contact us to get the real picture

Part No :: PM54-680K

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 68UH 610MA 460MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 26 - Aug 30 2025

DataSheet: PM54-680K PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of PM54-680K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM54-680K Specifications

Type	Description
Series:	PM54
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	68 µH
Tolerance:	±10%
Current Rating (Amps):	610 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	460mOhm
Q @ Freq:	-
Frequency - Self Resonant:	11MHz
Ratings:	-
Operating Temperature:	-30°C ~ 100°C
Inductance Frequency - Test:	2.52 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max):	0.189" (4.80mm)
