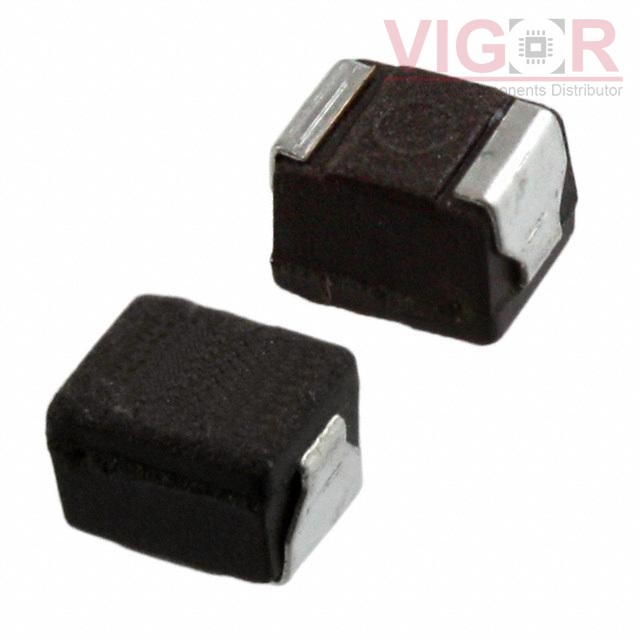

ELJ-PA220KF2

Image is for reference,
please contact us to get the real picture

Part No :: ELJ-PA220KF2

Manufacturer: Panasonic

Description: FIXED IND 22UH 420MA 660 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 27 - Aug 31 2025

DataSheet: ELJ-PA220KF2 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of ELJ-PA220KF2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ELJ-PA220KF2 Specifications

Type	Description
Series:	PA2
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ceramic
Inductance:	22 µH
Tolerance:	±10%
Current Rating (Amps):	420 mA
Current - Saturation (Isat):	290mA
Shielding:	Unshielded
DC Resistance (DCR):	660mOhm
Q @ Freq:	-
Frequency - Self Resonant:	15MHz
Ratings:	-
Operating Temperature:	-20°C ~ 85°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1210 (3225 Metric)
Supplier Device Package:	-
Size / Dimension:	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):	0.094" (2.40mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

HKQ0603U5N9S-T

FIXED IND 5.9NH 325MA 470 MOHM

HOT

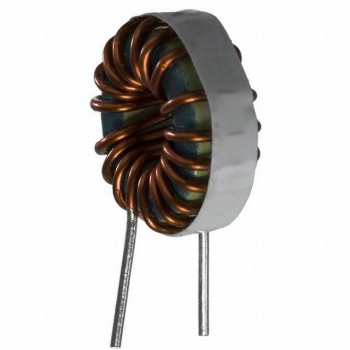

2220-V
