TSL0709RA-152KR16-PF

TSL0709RA-152KR16-PF

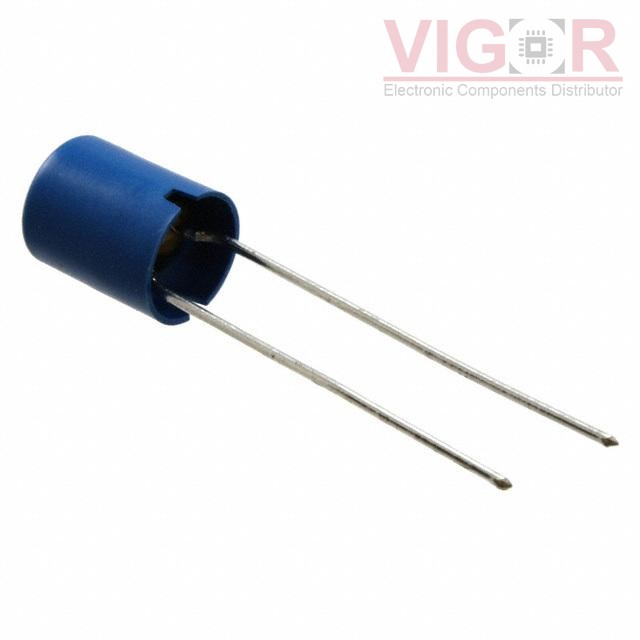

Image is for reference,
please contact us to get the real picture

Part No :

TSL0709RA-152KR16-PF

Manufacturer
TDK Corporation
Description
FIXED IND 1.5MH 160MA 5 OHM TH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 07 - Aug 11 2025
DataSheet
TSL0709RA-152KR16-PF PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of TSL0709RA-152KR16-PF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TSL0709RA-152KR16-PF Specifications
Type Description
Series:TSL
Package:Cut Tape (CT)Tape & Box (TB)
Part Status:Obsolete
Type:-
Material - Core:-
Inductance:1.5 mH
Tolerance:±10%
Current Rating (Amps):160 mA
Current - Saturation (Isat):170mA
Shielding:Unshielded
DC Resistance (DCR):5Ohm Max
Q @ Freq:50 @ 252kHz
Frequency - Self Resonant:1.3MHz
Ratings:-
Operating Temperature:-20°C ~ 85°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Radial, Vertical Cylinder
Supplier Device Package:-
Size / Dimension:0.303" Dia (7.70mm)
Height - Seated (Max):0.378" (9.60mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT IMC0603ER27NJ

IMC0603ER27NJ

FIXED IND 27NH 300MA 550 MOHM

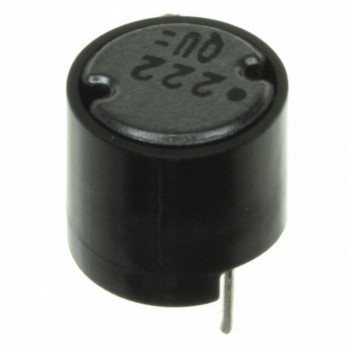

HOT ELC-12D332E

ELC-12D332E

FIXED IND 3.3MH 480MA 2.37 OHM

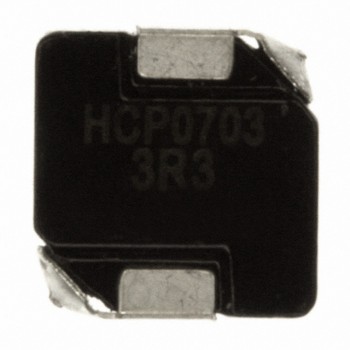

HOT HCP0703-3R3-R
