TSL1315RA-682JR30-PF

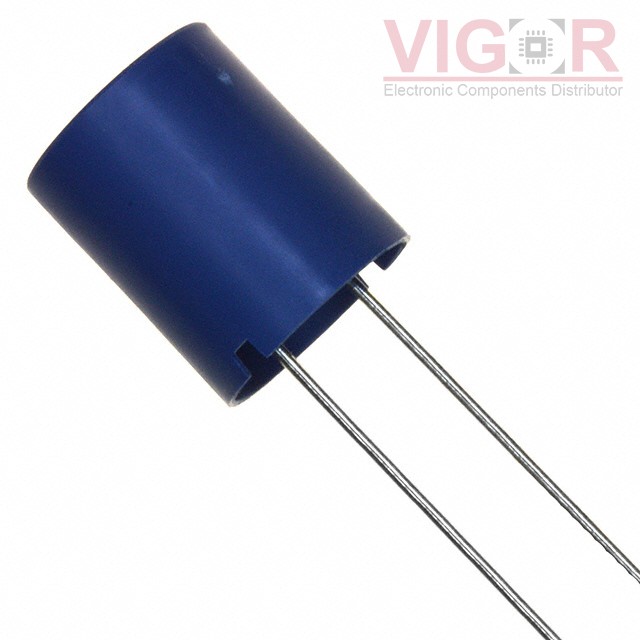

Image is for reference,
please contact us to get the real picture

Part No :: TSL1315RA-682JR30-PF

Manufacturer: TDK Corporation

Description: FIXED IND 6.8MH 300MA 6.5 OHM TH

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 10 - Aug 14 2025

DataSheet: TSL1315RA-682JR30-PF PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of TSL1315RA-682JR30-PF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TSL1315RA-682JR30-PF Specifications

Type	Description
Series:	TSL
Package:	Cut Tape (CT)Tape & Box (TB)
Part Status:	Obsolete
Type:	-
Material - Core:	-
Inductance:	6.8 mH
Tolerance:	±5%
Current Rating (Amps):	300 mA
Current - Saturation (Isat):	460mA
Shielding:	Unshielded
DC Resistance (DCR):	6.5Ohm Max
Q @ Freq:	30 @ 252kHz
Frequency - Self Resonant:	380kHz
Ratings:	-
Operating Temperature:	-20°C ~ 85°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical Cylinder
Supplier Device Package:	-
Size / Dimension:	0.551" Dia (14.00mm)
Height - Seated (Max):	0.669" (17.00mm)
