8230-86

8230-86

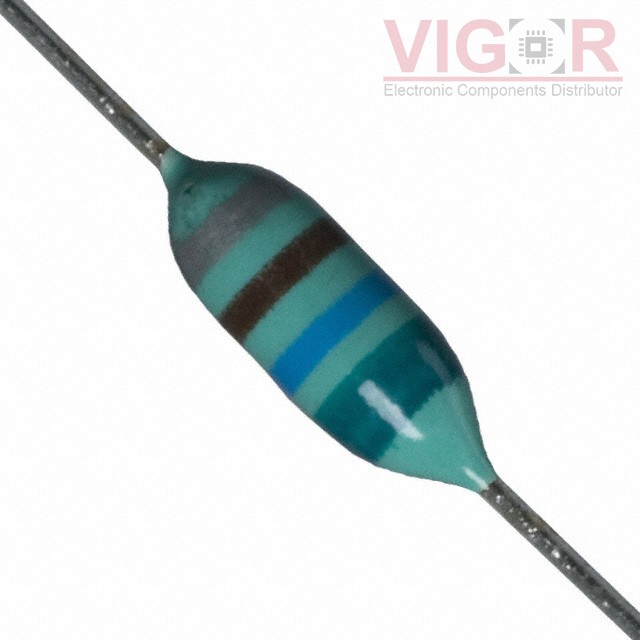

Image is for reference,
please contact us to get the real picture

Part No :

8230-86

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 560UH 48MA 46 OHM TH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 10 - Aug 14 2025
DataSheet
8230-86 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 8230-86 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

8230-86 Specifications
Type Description
Series:8230
Package:Bulk
Part Status:Obsolete
Type:Wirewound
Material - Core:Ferrite
Inductance:560 µH
Tolerance:±10%
Current Rating (Amps):48 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):46Ohm Max
Q @ Freq:30 @ 790kHz
Frequency - Self Resonant:5MHz
Ratings:-
Operating Temperature:-55°C ~ 105°C
Inductance Frequency - Test:790 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Axial
Supplier Device Package:-
Size / Dimension:0.120" Dia x 0.300" L (3.05mm x 7.62mm)
Height - Seated (Max):-
