760308103149

760308103149

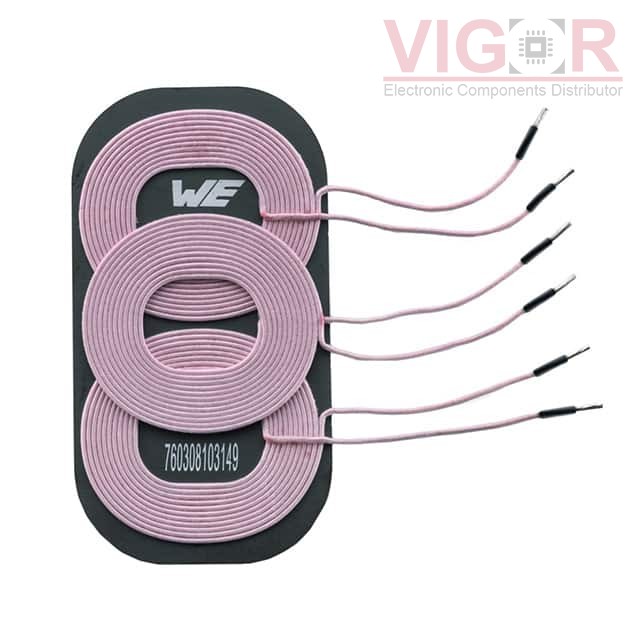

Image is for reference,
please contact us to get the real picture

Part No :

760308103149

Manufacturer
Würth Elektronik Midcom
Description
WE-WPCC WIRELESS POWER CHARGING
Catalog
Wireless Charging Coils
Shipped from
HK warehouse
Expected Shipping Date
May 20 - May 24 2024
DataSheet
760308103149 PDF
Availability
0 pieces
Unit Price
$22.12000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 760308103149 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

760308103149 Specifications
Type Description
Series:WE-WPCC
Package:Tray
Part Status:Active
Function:Transmitter
Type:3 Coil, 1 Layer
Inductance:10.2µH, 9.8µH, 10.2µH
Tolerance:±10%
DC Resistance (DCR):55mOhm
Q @ Freq:110 @ 125kHz
Current Rating (Amps):9A
Current - Saturation (Isat):18A
Frequency - Self Resonant:8MHz
Operating Temperature:-20°C ~ 105°C
Size / Dimension:4.17" L x 2.24" W x 0.17" H (106.0mm x 57.0mm x 4.2mm)
