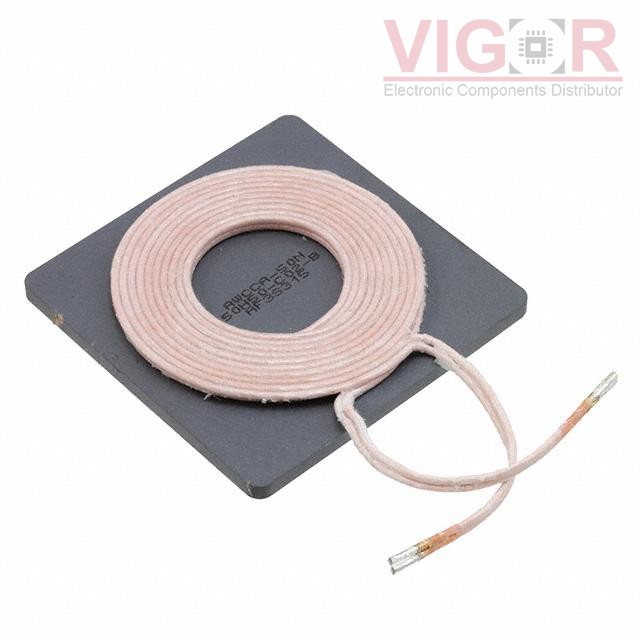

AWCCA-50N50H50-C02-B

AWCCA-50N50H50-C02-B

Image is for reference,
please contact us to get the real picture

Part No :

AWCCA-50N50H50-C02-B

Manufacturer
Abracon
Description
RX TX 1 COIL 1 LAYER 6.3UH 10.6A
Catalog
Wireless Charging Coils
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
AWCCA-50N50H50-C02-B PDF
Availability
69 pieces
Unit Price
$9.07000

Current price of AWCCA-50N50H50-C02-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AWCCA-50N50H50-C02-B Specifications
Type Description
Series:AWCCA-50N50
Package:Box
Part Status:Active
Function:Receiver, Transmitter
Type:1 Coil, 1 Layer
Inductance:6.3µH
Tolerance:±10%
DC Resistance (DCR):19mOhm
Q @ Freq:75 @ 100kHz
Current Rating (Amps):10.6A
Current - Saturation (Isat):40A
Frequency - Self Resonant:5.7MHz
Operating Temperature:-25°C ~ 85°C
Size / Dimension:1.96" L x 1.96" W x 0.19" H (50.0mm x 50.0mm x 5.0mm)
