760308101311

760308101311

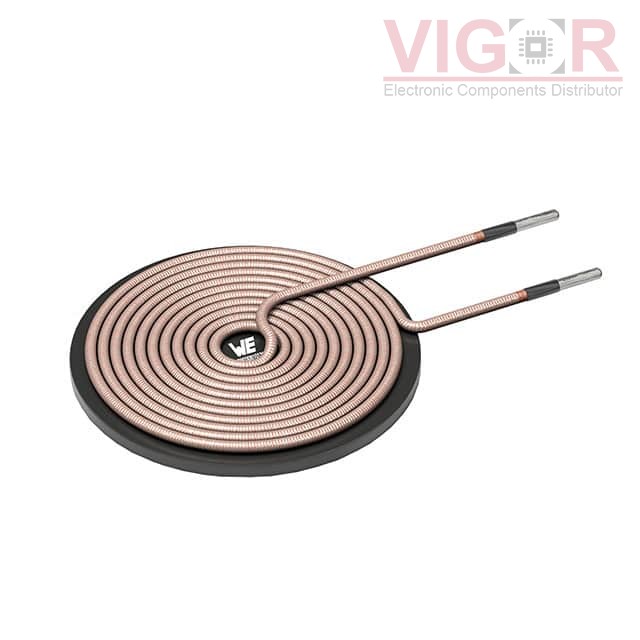

Image is for reference,
please contact us to get the real picture

Part No :

760308101311

Manufacturer
Würth Elektronik Midcom
Description
WE-WPCC WIRELESS POWER CHARGING
Catalog
Wireless Charging Coils
Shipped from
HK warehouse
Expected Shipping Date
Jul 19 - Jul 23 2025
DataSheet
760308101311 PDF
Availability
6 pieces
Unit Price
$22.43000

Current price of 760308101311 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

760308101311 Specifications
Type Description
Series:WE-WPCC
Package:Tray
Part Status:Active
Function:Transmitter
Type:1 Coil, 1 Layer
Inductance:5.8µH
Tolerance:±10%
DC Resistance (DCR):14mOhm
Q @ Freq:220 @ 125kHz
Current Rating (Amps):21A
Current - Saturation (Isat):-
Frequency - Self Resonant:13MHz
Operating Temperature:-20°C ~ 105°C
Size / Dimension:2.76" Dia x 0.33" H (70.0mm x 8.5mm)
